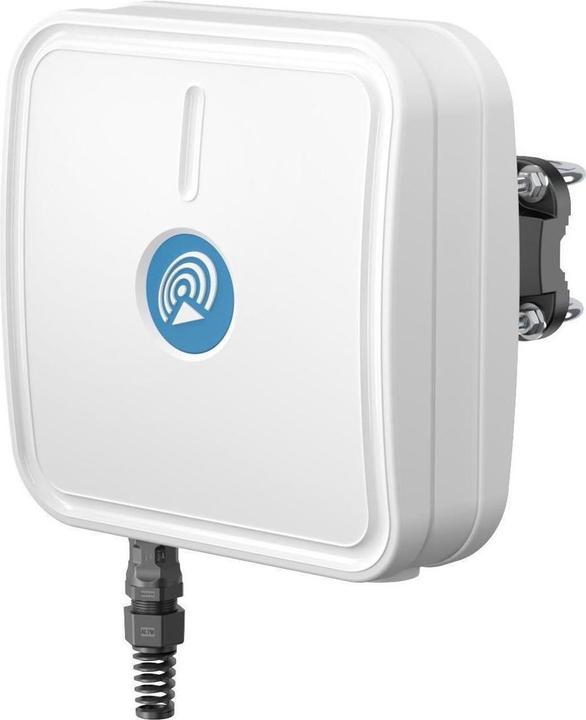

Quwireless AEG5100MO - QuMax Omni with PoE Splitter for Robustel EG5100

Integrated multi-band LTE omni antenna, Wi-Fi 6E antenna, GPS antenna, PoE splitter, and a place to install Robustel EG5100 (all-in-one).

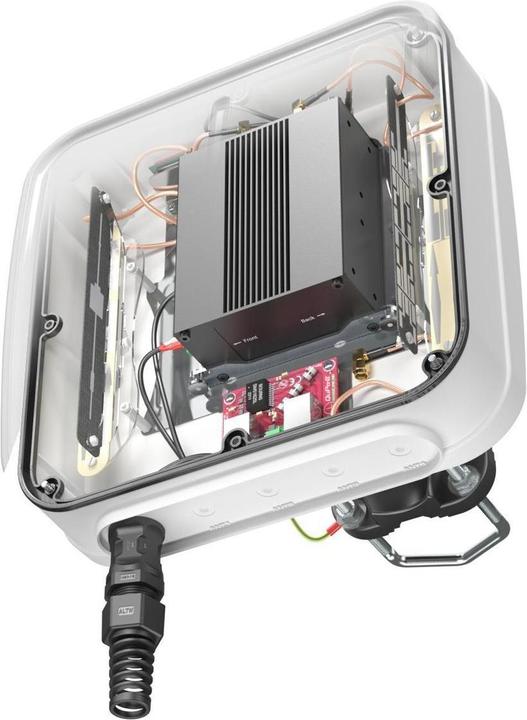

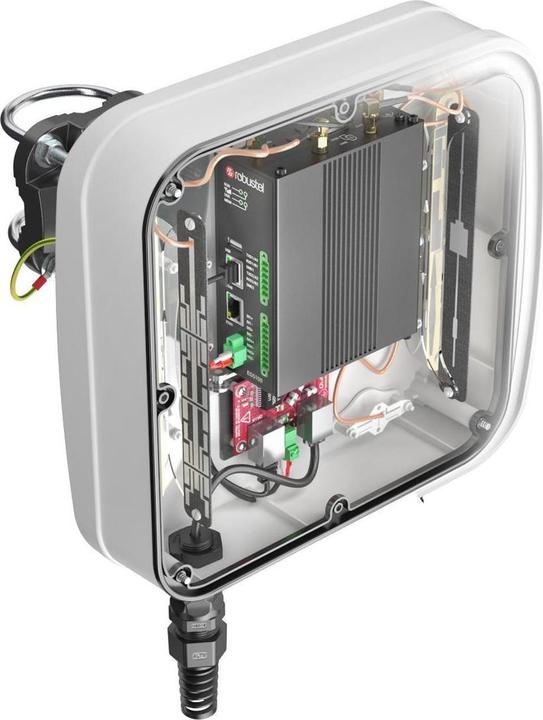

The QuMax Omni all-in-one antenna for the Robustel EG5100 gateway is an ideal outdoor device for mobile and fixed installations such as industrial, public, CCTV, hotspots, yachts, boats, campers, and RVs. It features embedded omni LTE, Wi-Fi 6E, and GPS antennas. When used with the EG5100, the QuMax Omni antenna provides a complete integrated solution with an embedded gateway and multi-band antennas in one enclosure.

The set includes a PoE splitter that allows you to split data and power from a single Ethernet cable while maintaining gigabit transfer speeds and protecting the LAN port from damage caused by overvoltage, short circuits, or improper connections.

LTE antenna specifications:
Frequency:

• 694 - 960 MHz
• 1.7 - 2.2 GHz
• 2.5 - 2.7 GHz

Gain:

• 694 - 960 MHz: 2 dBi
• 1.7 - 2.2 GHz: 2 dBi
• 2.5 - 2.7 GHz: 3 dBi

Supported LTE/5G bands:

• 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n95, n98, n100, n101, n256

VSWR:

• <1.50, max <2.50

Beamwidth:

• 360°/25° ±5°

Polarization:

• Vertical

Impedance:

• 50 Ω

Wi-Fi antenna specifications:
Frequency:

• 2.4 - 2.5 GHz
• 5.0 - 7.2 GHz

Gain:

• 2.4 - 2.5 GHz: 6 dBi
• 5 GHz: 7.5 dBi
• 7 GHz: 7.5 dBi

VSWR:

• <1.50, max <2.00

Beamwidth:

• 360°/25°

Polarization:

• Vertical

Impedance:

• 50 Ω

Mechanical specifications:
Materials:

• BS, aluminum, PTFE, fiberglass

Ingress protection:

• IP67

Connector type:

• RJ45

Dimensions:

• 272 x 276 x 96 mm
• 10.71 x 10.87 x 3.78 inches

Weight:

• 1.8 kg
• 3.97 lbs

Operating temperature:

• From -40°C to 75°C
• From -40°F to 167°F

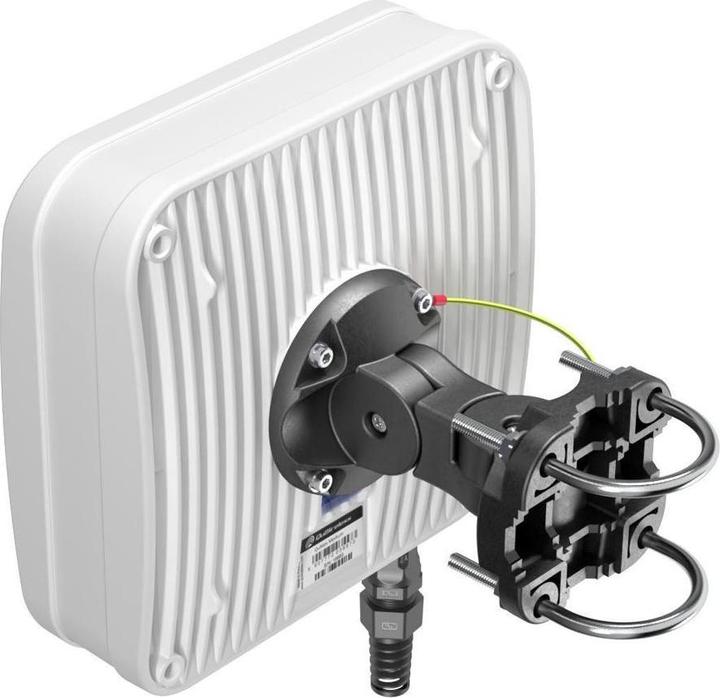

Mast diameter:

• 25-60 mm
• 0.98-2.36 inches.
