Product details

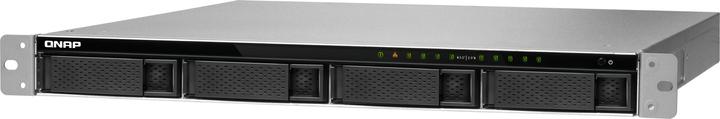

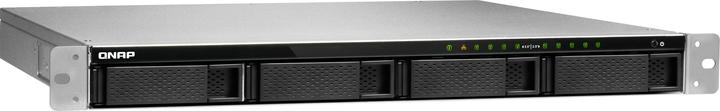

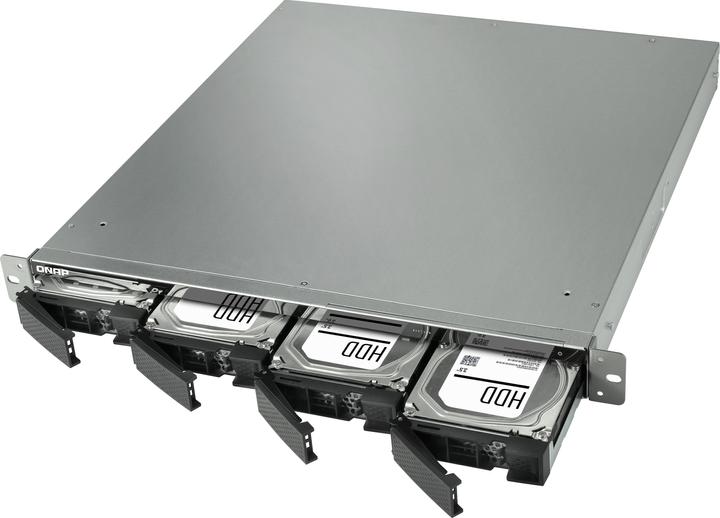

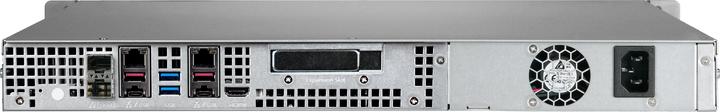

The QNAP TVS-972XU-I3-4G is a powerful NAS chassis designed for use in a 19-inch rack. With space for up to nine hard drives, this model offers a flexible storage solution that is ideal for businesses and demanding users. The integrated Intel® Core™ i3 processor with a clock speed of 3.6 GHz ensures efficient data processing, while the 4 GB DDR4 RAM guarantees smooth performance. The chassis supports various RAID configurations, including RAID 0, 1, 5, 6, 10, and JBOD, providing high data security and flexibility in storage management. With two Gigabit Ethernet ports and two 10GbE SFP ports, the device is designed for fast network connections, significantly enhancing data transfer speeds. Additionally, the NAS features hot-swapping functionality, allowing for easy hard drive replacement without system downtime.
- Supports up to 9 hard drives with SATA 6Gb/s
- Integrated Mellanox® ConnectX-4 Lx 10GbE controller
- Maximum RAM of 64 GB
- Redundant power supply for increased reliability
- Hot-swapping functionality for easy maintenance.
Max. number of hard disks | 9 |
Memory | 4 GB |
NAS HDD assembly | NAS Empty Enclosure |
Total storage capacity | 0 TB |
RAID configuration | 0, 1, 10, 5, 50, 6, 60, JBOD |
Network connections | RJ45 (2x) |
Exact USB ports | USB-A 3.2 Gen 1 (2x) |
Item number | 10298671 |
Manufacturer | QNAP |
Category | NAS |
Manufacturer no. | TVS-972XU-I3-4G |
Release date | 8.11.2018 |
External links |
Colour | Black |
Exact colour description | Black |
NAS HDD assembly | NAS Empty Enclosure |
Model | 19" rack |
Rack Unit | 1U |
Max. number of hard disks | 9 |
Hard drive form factor | 2.5", 3.5" |
RAID configuration | 0, 1, 10, 5, 50, 6, 60, JBOD |
Memory type | DDR4-RAM |
Memory | 4 GB |
Maximum possible memory | 64 GB |
Data storage configuration | 0 TB |
Total storage capacity | 0 TB |
Hard disk additional functions | Hot swapping |
Processor type | Intel Core i3-8100 |
Clock frequency | 3.60 GHz |
Max. turbo clock rate | 1.10 GHz |
Number of processor cores | 4 -Core |
Network connections | RJ45 (2x) |
Connectivity | Ethernet, USB |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (2x) |
Video connections | HDMI (1x) |
Internal connection options | PCI Express x16 (1x), PCI Express x8 (2x) |
Number of camera licenses included | 3 x |
Power consumption | 72.17 W |
Number of fans | 3 x |
Fan diameter | 40 mm |
Redundant power supply unit | Yes |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x network cable |
Length | 48.42 cm |
Width | 48.26 cm |
Height | 4.33 cm |
Weight | 7.48 kg |
