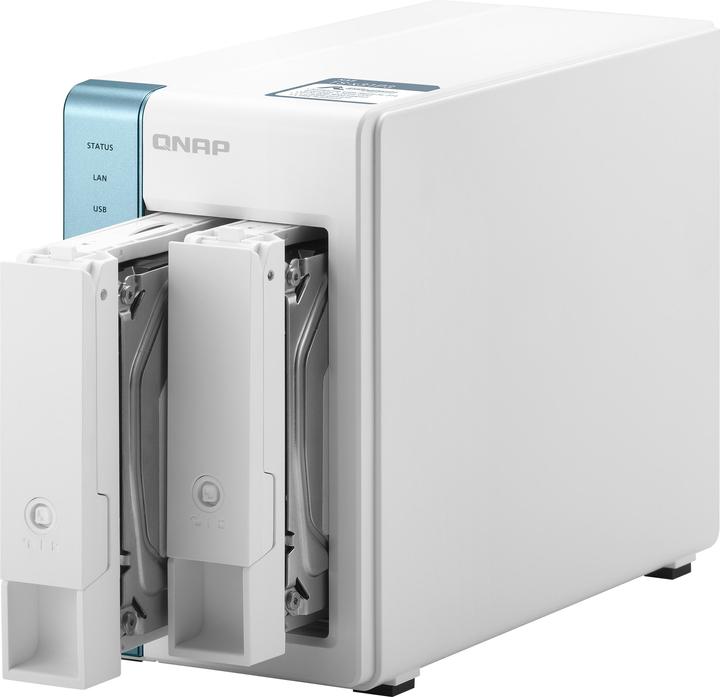

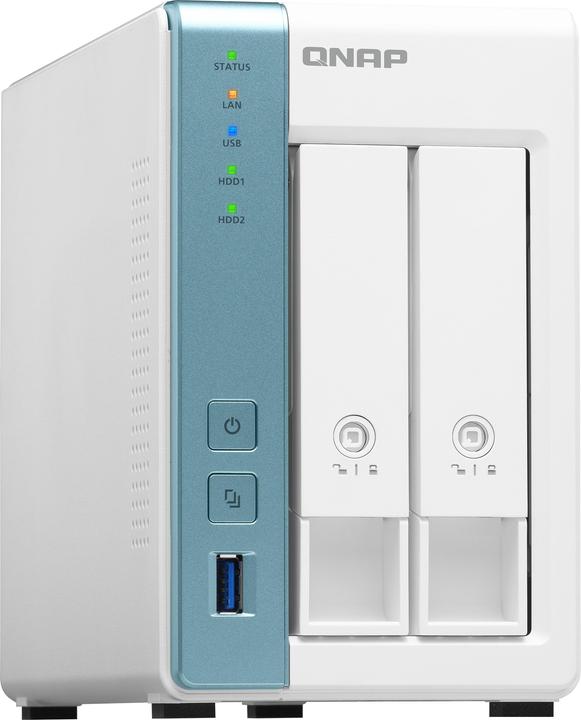

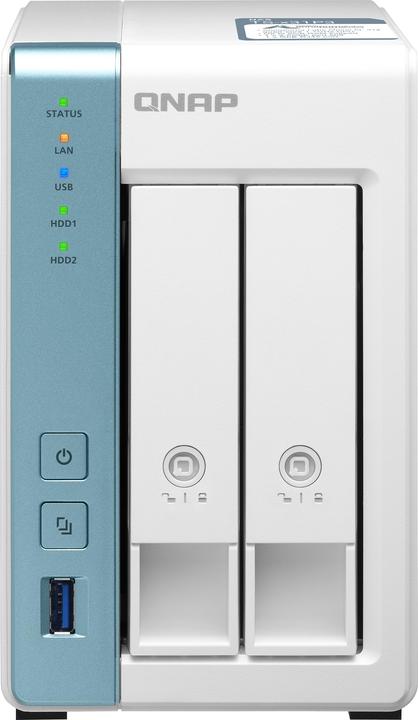

Equipped with the Alpine AL-314 from Annapurna Labs, a quad-core processor with 1.7 GHz, 2 GB DDR3L RAM, a 1GbE LAN port, and a 2.5GbE LAN port, the TS-231P3 features a 2.5GbE RJ45 port that is up to 2.5 times faster than standard Gigabit Ethernet. This enables smoother multimedia playback and daily use. The TS-231P3 ensures data security through support for AES 256-bit encryption and various options for local, remote, and cloud backups – including snapshot protection, which allows files and data to be restored to a previously recorded state if they are accidentally deleted or altered, or affected by malware.
5GbE connectivity provides smoother everyday use and multimedia playback.
HBS secures and synchronizes NAS data with remote servers or cloud storage, while QuDedup deduplicates data at the source to optimize bandwidth and storage usage.
Snapshots fully capture the system status and data. If files are accidentally deleted or changed, they can be quickly restored to the previously recorded state.
Supports LXC and Docker containers for the rapid deployment of application services across different platforms.
File Station centralizes NAS and cloud-based files for easy access. Files can also be easily encrypted to protect sensitive data.
Expand the storage capacity of the TS-231P3 by connecting TR and TL series storage enclosures.
Max. number of hard disks | 2 |
Memory | 4 GB |
NAS HDD assembly | NAS Empty Enclosure |
Total storage capacity | 0 TB |
RAID configuration | 0, 1 |
Network connections | RJ45 (2x) |
Exact USB ports | USB-A 3.0 (3x) |
Item number | 13687141 |
Manufacturer | QNAP |
Category | NAS |
Manufacturer no. | TS-231P3-4G |
Release date | 1.9.2020 |
External links |
Colour | White |
Exact colour description | White |
NAS HDD assembly | NAS Empty Enclosure |
Model | Desktop |
Max. number of hard disks | 2 |
Hard drive form factor | 2.5" (with optional mounting), 3.5" |
RAID configuration | 0, 1 |
Memory type | DDR3-RAM |
Memory | 4 GB |
Maximum possible memory | 8 GB |
Add-on packages | DLNA Certification |
Data storage configuration | 0 TB |
Total storage capacity | 0 TB |
Hard disk additional functions | Hot plugging, Hot swapping |
Processor type | Alpine AL-314 |
Clock frequency | 1.70 GHz |
Max. turbo clock rate | 1.70 GHz |
Number of processor cores | 4 -Core |
Network connections | RJ45 (2x) |
Connectivity | Ethernet, USB |
USB ports | USB-C |
Exact USB ports | USB-A 3.0 (3x) |
Video connections | HDMI (1x) |
Internal connection options | S-ATA III (1x) |
Max. number of cameras | 16 x |
Power consumption | 90 W |
Power consumption (standby) | 8.46 W |
Number of fans | 1 x |
Fan diameter | 120 mm |
Redundant power supply unit | No |
CO₂-Emission | |
Climate contribution |
Scope of delivery | AC, Lan (RJ-45) |
Length | 21.90 cm |
Width | 10.20 cm |
Height | 16.90 cm |
Weight | 1.46 kg |
Length | 27.30 cm |
Width | 20 cm |
Height | 23.50 cm |
Weight | 2.42 kg |
