Q Acoustics Concept 20

1 pcs.
Currently out of stock
Free shipping starting at 50.–

Product details

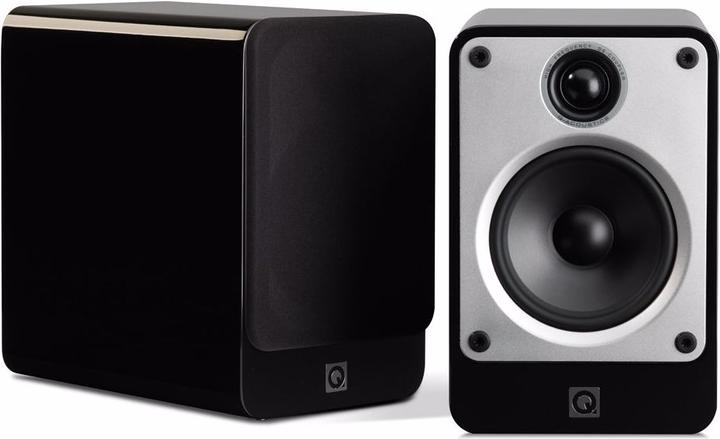

The Concept 20 is a unique speaker that sets new standards. To achieve this goal, the development team at Q Acoustics analyzed the fundamental issue of cabinet resonances using state-of-the-art technologies. Taming these resonances is widely regarded as the biggest hurdle in designing speakers that sound excellent while remaining affordable. The fantastically crafted, nearly resonance-free, and high-gloss lacquered cabinets provide the foundation for optimal sound quality for the 125 mm mid-bass driver and the particularly wide-dispersing 25 mm tweeter. The cabinet of the Concept 20 features a special "box-in-box" construction: the "Gelcore" cabinet has double MDF walls, with the space in between filled with a gel that absorbs resonances and converts kinetic energy into heat. Even the attractive aluminum front serves more than just decorative purposes: it is part of a construction that presses a layer of butyl rubber against the front wall to further reduce cabinet resonances. The Concept 20, finished with multi-layer high-gloss lacquer, is available in either black or white cabinet versions. The speakers can be placed freely in the room or directly against a wall, as they come with a foam plug that allows for bass response adjustment. Depending on the placement, it can be inserted into the rear bass reflex port to dampen low-frequency output. These innovative bookshelf speakers have already won numerous tests and awards, including "Product of the Year" at What Hi-Fi?, "Editor's Choice" at Hi-Fi Choice, and "Highly Recommended" at AV Forums.

Key specifications

Audio channel
Stereo
Loudspeaker construction
Passive speakers
Application range
Hi-fi
Nominal power
40 W
Item number
764609

General information

Manufacturer
Q Acoustics
Category
Hi-fi + Home cinema speakers
Manufacturer no.
CONCEPT 20 BLACKHG
Release date
18.11.2013

Application range

Sales unit
1 pcs.
Loudspeaker construction
Passive speakers
Audio channel
Stereo
Application range
Hi-fi
Speaker design
Bass reflex
Bass reflex port
Rear port

Colour

Colour
Black
Exact colour description
High gloss black
Gloss level
High gloss

Passive speaker properties

Speaker principle
2-way
Recommended amplifier power
25 - 75 Watt (W)
Nominal power
40 W
Power handling capacity (max.)
150 W
Impedance
4 - 6 Ohm
Efficiency
86 dB
Connection Features
Bi-AMP

Playback frequency properties

Transmission range
64 - 22000 Hz
Crossover frequency
2900 Hz

Connection to main device

Audio Connections
Screw terminals

Woofer

Number
1 x
Diameter
125 mm

Tweeter

Tweeter type
Dome tweeter
Number
1 x
Diameter
25 mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width
170 mm
Height
265 mm
Depth
282 mm
Weight
6 kg

Package dimensions

Length
43.50 cm
Width
32.50 cm
Height
34 cm
Weight
12.22 kg
