Poynting GSM Antenna 4dbi Omni Dash LTE Antenna 1x1m Cable 90° SMA-M - Omnidirectional -
Delivered between Wed, 11.6. and Fri, 20.6.
9 items in stock at supplier
9 items in stock at supplier
Product details

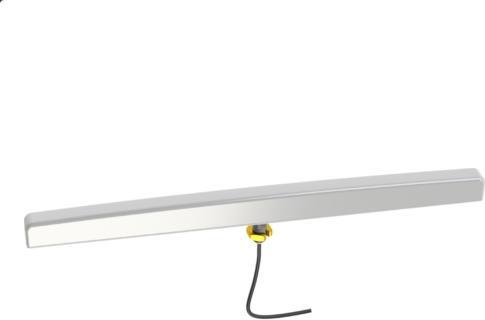

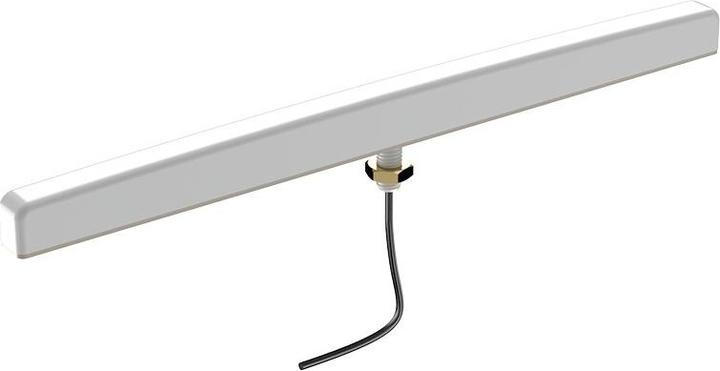

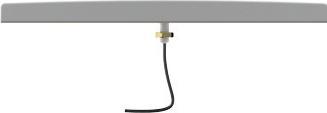

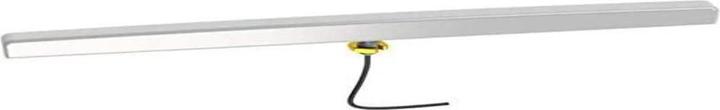

The DASH-1-01 antenna has been specifically designed for low-profile requirements, such as smart meters. This omnidirectional antenna is suitable for both indoor and outdoor use and is typically mounted on the top or side of smart meter boxes. The DASH-1-01 antenna has been developed with ease of installation in mind and covers the LTE frequency bands from 690 to 2700 MHz. This antenna offers superior electrical performance across the entire 690 to 2700 MHz LTE band.
M2M and IoT application areas:
- Smart Utilities: Smart Power Metering, Gas and Water Measurement
- Smart Buildings: Climate Control, Access Control, Security, Irrigation
- Digital Signage
- Intelligent Environmental and Water Systems
- Warehouses & Logistics Systems
- Industrial Factory Automation and M2M Systems
- Agriculture & Agricultural M2M & IoT
Can be used with the following IoT technologies:
- Zigbee
- Z-Wave
- LoRaWAN
- Sigfox
- Wi-Fi
- Wi-Fi HaLow
- LTE-M/NB-IoT
- Bluetooth
Cable: RG174, 1 m, Connector: SMA(m) right angle.
Antenna type | Mobile radio antenna |
Antenna connection | SMA |
Cable length | 1 m |
Application range | Indoor, Outdoor |
Protection type (IP code) | IP67 |
Operating temperature | -40 - 80 °C |
Item number | 30556505 |
Manufacturer | Poynting |
Category | Network antenna |
Manufacturer no. | A-DASH-0001-01 |
Release date | 5.5.2021 |
Antenna type | Mobile radio antenna |
Antenna gain | 4 dBi |
Antenna connection | SMA |
Cable length | 1 m |
Application range | Indoor, Outdoor |
Protection type (IP code) | IP67 |
Operating temperature | -40 - 80 °C |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 1 m |
Width | 0.26 m |
Height | 0.03 m |
Weight | 60 g |
