Poynting Antennas OMNI-A0121

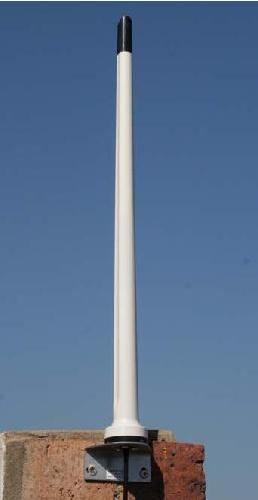

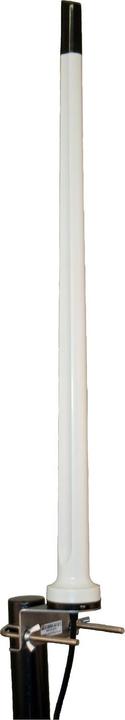

This omnidirectional antenna with medium gain covers the frequency bands GSM 900, GSM 1800 / UMTS, and LTE. It is a lightweight antenna that is easy to install. It offers a cost-effective omnidirectional solution as it comes with a 5-meter long cable. The antenna is very popular among installers due to its versatile base station features. It is also ideal for Machine-to-Machine (M2M) applications that communicate over the GSM network (GPRS/EDGE/3G/HSPA/LTE).

Highlights
• Wall and mast mounting options
• Agile base station
• Lightweight
• Covers most international GSM and LTE bands

Applications
• Enables the provision of wireless services in rural and remote areas
• M2M communication (ATMs, financial data processing, telemetry, etc.)
• Extends wireless data transmission to areas with weak signals (can increase connectivity range by a factor of 3 or more)
• Poor reception of data signals (indoors or outdoors)
• Slow data transmission connection
• Unstable connection
• Increases reliability of system transmission

Package Contents
• A-OMNI-0121-V3
• M6x60mm U-bolt screw
• Econo bracket
• M6 nuts
• M6 washers
• Dowels and screws for easy installation.
