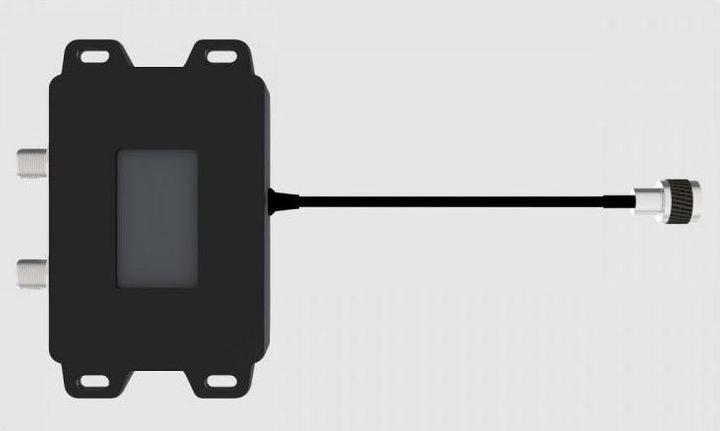

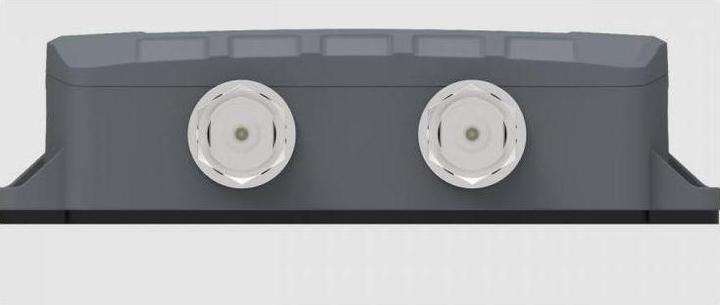

Poynting Antenna Accessories - A-SPLT-0016-V1-02 - Ultra Wideband 2-Way Splitter - 2 x SMA(F) & 1 x
Only 1 piece in stock
Product details
The SPLT-16 is a 2-way splitter with ultra-wideband operation, functioning from 410 to 7200 MHz. This ultra-wideband capability allows for various implementations and can be used for all common 4G/LTE and 5G applications, as well as dual-band Wi-Fi implementations. The product utilizes a Wilkinson power divider design, ensuring low loss along with good phase and amplitude balance. The SPLT-16 can be used as a splitter to distribute power from a single antenna to two independent devices. Additionally, the SPLT-16 can serve as a combiner to merge two separate antennas into a single device, enabling antenna diversity and improved performance. The housing of the SPLT is made from ABS with UV stabilizer, a highly impact-resistant plastic that is also resistant to acids and other chemicals.
Highlights
- Ultra-wideband 2-way splitter from 410 to 7200 MHz
- Covers 5G/4G/3G/2G frequency bands
- Supports dual-band Wi-Fi for 2.4 GHz and 5 to 7.2 GHz
- Easy to install with a robust design
- Weatherproof, dust-tight, and vandal-resistant housing (IP 68)
- SMA (F)/SMA (M)
Applications
- Least-Cost Routers (LCRs)
- Combining the coverage of two antennas into a single device
- Distributing power from a single antenna to two independent devices.
Antenna connection | SMA |
Cable length | 0.30 m |
Protection type (IP code) | IP68 |
Operating temperature | -40 - 80 °C |
Item number | 30115703 |
Manufacturer | Poynting |
Category | Network antenna |
Manufacturer No. | A-SPLT-0016-V1-02 |
Release date | 25.4.2023 |
Antenna connection | SMA |
Cable length | 0.30 m |
Protection type (IP code) | IP68 |
Operating temperature | -40 - 80 °C |
CO₂ emissions | 13.25 kg |
Climate contribution | CHF 0.31 |
Length | 0.25 m |
Width | 0.21 m |
Height | 0.20 m |
Weight | 200 g |
Length | 20.50 cm |
Width | 20 cm |
Height | 5.90 cm |
Weight | 329 g |
