Poynting A-OMNI-0280-02-V1 - OMNI-280-02 - All-Weather Omni-Directional LTE + 5G SISO Antenna

Poynting OMNI-280-02 - Omnidirectional LTE + 5G SISO Antenna for All Weather Conditions

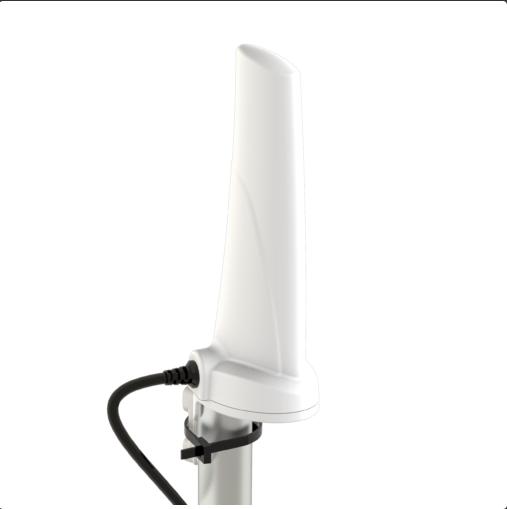

The OMNI-280-02 antenna offers an innovative solution for enhancing signals in 4G/3G and 2G networks. It is a unique magnetically mounted, wall or pole-mountable, single-polarized LTE band antenna that incorporates an ultra-broadband element in a single housing.

This antenna is a cost-effective solution for improving signal reception and throughput. The OMNI-280-02 enhances signal reliability, provides higher data throughput for users, and ensures a stable, high-quality connection.

This improves the user experience and secures customer loyalty. It is ideal for all applications in the GSM network (LTE/HSPA/3G/EDGE/GPRS).

Electronic Specifications

• Frequency Bands: 698–960 MHz; 1710 - 2700 MHz; 3400 - 3800 MHz
• Gain (max): 4 dBi
• VSWR: <2:1
• Input Power: 10 W
• Input Impedance: 50 Ohm (nominal)
• Polarization: Linear vertical
• Cable Loss: 0.47 dB/m at 900 MHz; 0.75 dB/m at 2000 MHz; 0.79 dB/m at 2500 MHz; 0.83 dB/m at 3500 MHz
• Lightning Protection: Yes
• Cable Length: 2 m
• Cable Type: RG58
• Connector: SMA (m)

Mechanical Specifications

• Product Dimensions (L x W): +/- 154 x 51 mm
• Radome Material: ABS (halogen-free)
• Radome Color: Cool Grey 1C

Environmental Specifications

• Wind Resistance: <120 km/h
• Operating Temperature Range: -40°C to +70°C
• Environmental Conditions: Outdoor/Indoor
• Operating Humidity: Up to 98%
• Storage Humidity: 5% to 95% non-condensing
• Storage Temperature: -40°C to +70°C
• Flammability Class: UL 94-HB.
