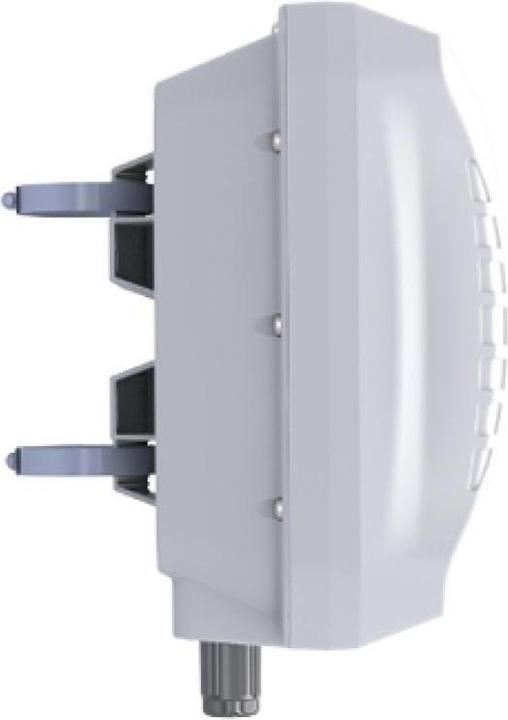

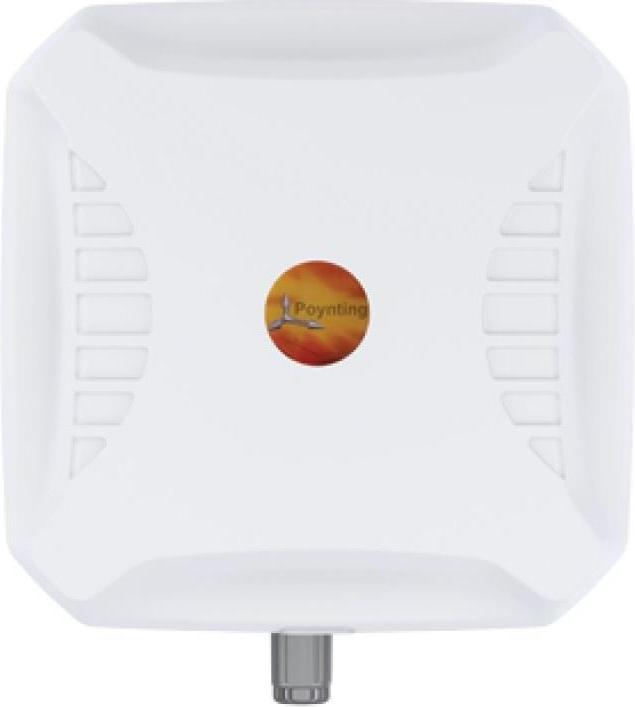

Poynting A-EPNT-0001-V1-01 ePoynt Outdoor Router Enclosure incl. Cross-Polarised Omnidirectional L

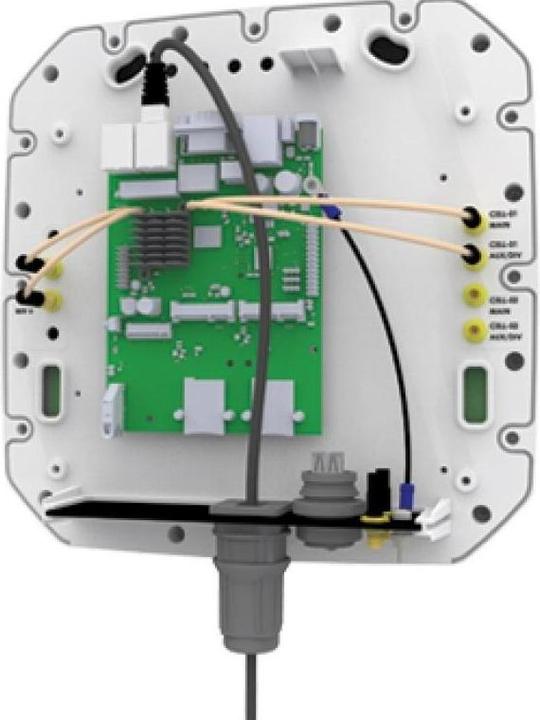

Poynting Antennas introduces its brand new antenna enclosure series, the ePoynt series. The ePoynt enclosures are designed to fit a variety of router modules and transform the antenna enclosure into Customer Premises Equipment (CPE) – simply add your own LTE/5G router. The ePoynt enclosure accommodates routers up to a size of 185 x 145 x 45 mm. The ePoynt-1 (EPNT-1) combines Poynting's cross-polarized omnidirectional antennas for enhanced performance. This is ideal in urban areas where multiple base stations are nearby, but higher stability and throughput are required due to the improved MIMO configuration.

The EPNT-1 features four cross-polarized antennas, making it perfect for 4x4 MIMO or Dual 2x2 MIMO routers. The antennas provide broadband coverage from 617 to 3800 MHz, making them ideal for LTE and 5G deployment with a peak gain of 5 dBi. The EPNT-1 also includes two omnidirectional dual-band Wi-Fi antennas that cover the Wi-Fi bands of 2.4 GHz and 5 to 6 GHz for 2x2 MIMO. Additionally, the EPNT-1 enclosure is designed to withstand harsh weather conditions, making the antenna weatherproof and waterproof with an IP65 rating.

Electrical Specifications - Cellular

• Frequency Bands: 617 - 960 MHz, 1427 - 1517 MHz, 1710 - 2700 MHz, 3400 - 3800 MHz
• Gain (max.): 1 dBi at 617 - 960 MHz, 0.5 dBi at 1427 - 1517 MHz, 4.5 dBi at 1710 - 2700 MHz, 2.5 dBi at 3400 - 3800 MHz
• VSWR: ≤2.5:1
• Input Power: 10 W
• Input Impedance: 50 Ohm (nominal)
• Polarization: Cell 1: ±45°, Cell 2: vertical and horizontal linear
• Grounding: Yes

Electrical Specifications for Wi-Fi

• Frequency: 2400 - 2500 MHz, 5000 - 7200 MHz
• Gain (max.): 3 dBi at 2400 - 2500 MHz, 7.5 dBi at 5000 - 7200 MHz
• VSWR: <2.5:1 over 90% of...
