Poynting 43098 - A-SWIRL-0008-V1-02 SWIRL X-polarised, omnidirectional 5GLTE-Multi

Poynting A-SWIRL-0008-V1-02 SWIRL X-polarized, omnidirectional 5G/LTE Multi-MIMO antenna array including base

Product Description

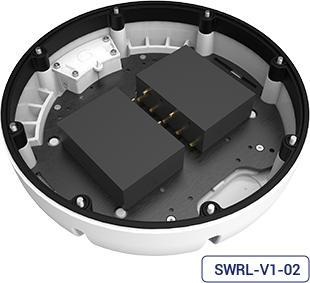

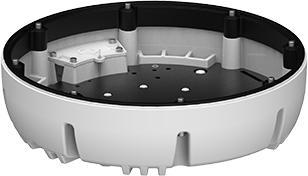

The SWIRL-8 features 8x cross-polarized mobile antennas covering frequencies from 617 to 6000 MHz with a peak gain of 6 dBi, 4x dual-band Wi-Fi antennas (2.4 GHz and 5 to 7.2 GHz), and 1x dual-band GNSS antenna for L1 and L5 constellations. The SWIRL-8 is characterized by a compact design with a diameter of 382 mm and a height of 127 mm, and it has an IP69K protection rating, ensuring a long lifespan in harsh environments. While SWIRL is primarily designed for maritime applications, it is also suitable for various mobility applications, making it a versatile choice for different connectivity needs. Additionally, the SWIRL can be transformed into a CPE (Customer Premises Equipment) device by installing the SWIRL-BASE. This aluminum die-cast base is specifically designed to accommodate 5G routers and is available in sizes of 231 x 193 x 50 mm or 293.5 x 148.5 x 50 mm. By installing the router in the base, coaxial cable runs are reduced, enhancing performance by minimizing signal loss. Experience the future of connectivity with Poynting's SWIRL antenna solution, designed for seamless integration and excellent performance in demanding environments.

Highlights

• Powerful, omnidirectional marine and mobility antenna
• Up to 8 x 8 MIMO capability for enhanced performance
• Covers the current 5G/LTE band from 617 to 6000 MHz
• Innovative heat sink design for improved temperature regulation
• UV and saltwater resistant for marine and coastal applications

Applications

• Reliable connectivity for ships, boats, and more...
