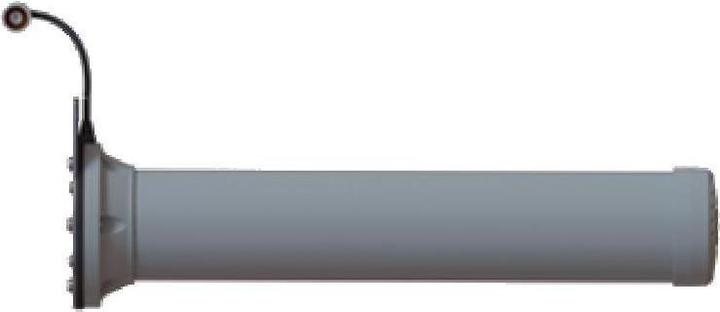

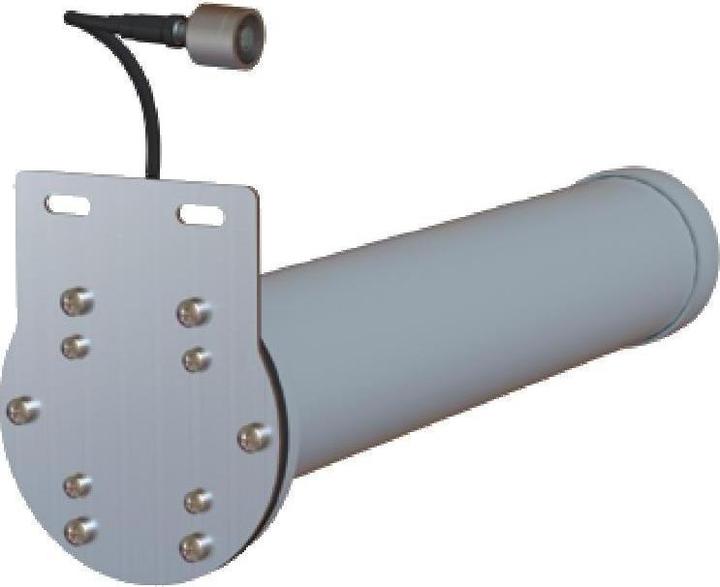

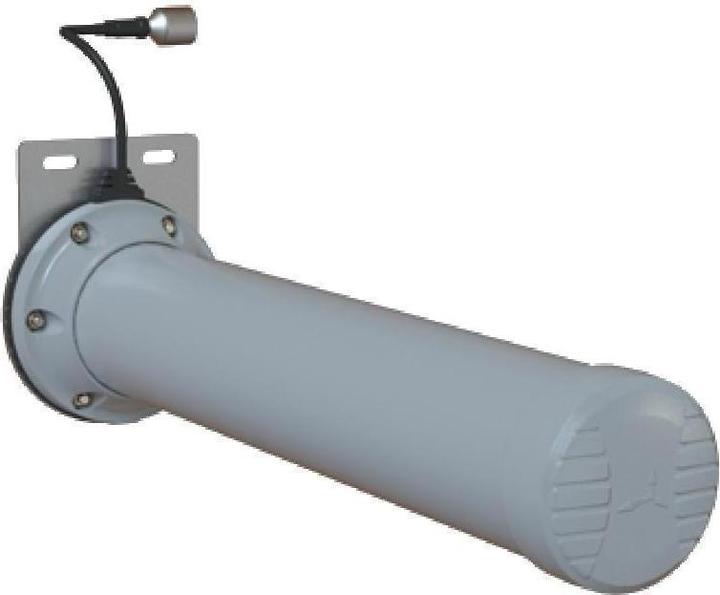

Poynting A-HELI-0031-V2-01-L 1x LTE/5G/WiFi circularly polarized antenna, IP65 outdoor, 9.5dBi max. 1700-7200MHz, 350mm N(m)

The HELI-31 is part of a series of MiniHELI antennas. These antennas are small compared to their larger counterparts, making them ideal for mining tunnels where IoT/M2M connectivity is utilized. They can also be used for coverage at bus stops.

The HELI-31 is a ultra-wideband antenna that radiates unidirectionally, making it perfect for covering the 1710-7200 MHz range. These antennas are typically used for IoT applications in tunnels to enable telemetry and mining automation. This broadband helical antenna extends around tunnel curves in a non-line-of-sight scenario and offers immunity to many signal-interfering objects such as trains and drilling machines that obstruct the tunnel.

Delivery includes:

• Antenna

Highlights:

• Ultra-wideband circularly polarized
• Wi-Fi 6 (802.11ax) and LTE/4G/5G
• Enhanced signal propagation and connection stability within a tunnel
• Unidirectional - radiates in one direction within the tunnel
• Careful mechanical design ensures robustness, water, and dust resistance
• Ideal for M2M and Wi-Fi applications in mining and tunnels

Technical details:

• 1x LTE/5G/WiFi
• IP65 outdoor
• 9.5dBi max. 1700-7200MHz
• RG-58
• 350mm N(m)
• Ceiling mount
• MIL-STD 810F/ASTM B117, IK08, UL 94-HB

Applications:

• Complementing fiber/cable networks by providing wireless hotspots in areas to enhance mobility or extend networks to inaccessible areas such as mines and tunnels
• Telemetry underground
• Creating complete tunnel-based/mining-wide data networks.
