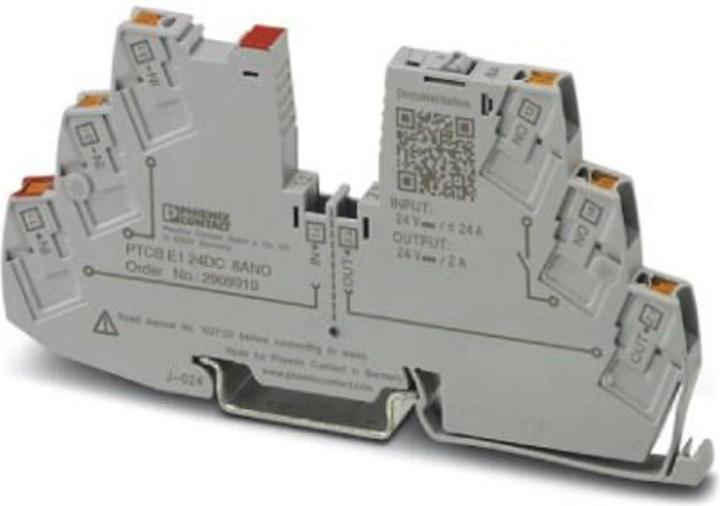

Phoenix Contact PTCB E1 24DC/8A NO circuit breaker 1 NO contact 1 pc.

Ratings
BrandMore from Phoenix Contact
Delivered between Thu, 18.9. and Thu, 25.9.
Supplied by
Conrad CH
Free shipping starting at 50.–

Product details

The PTCB E1 24DC/8A NO circuit breaker from Phoenix Contact is a single-channel, electronic device protection switch specifically designed to protect consumers at 24 V DC. It provides reliable protection against overload and short circuits, making it ideal for applications that require simple potential distribution. The circuit breaker is suitable for mounting on DIN rail and features a compact design. With a fixed rated current of 8 A and a power loss of only 0.3 W, it is both efficient and powerful. The international protection class IP20 ensures that the switch can be used in a variety of environments, while the operating temperature range of 30 to 60 °C allows for flexible usage. The PTCB E1 is a reliable solution for securing electrical systems and contributes to safety and efficiency in electrical installations.

  • Single-channel circuit breaker for 24 V DC applications
  • Protection against overload and short circuits

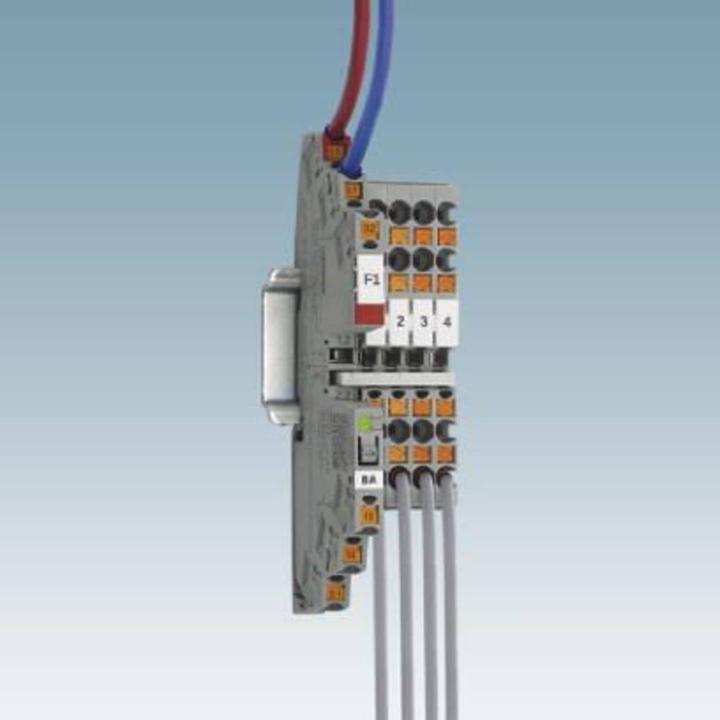

  • Easy integration into the CLIPLINE complete terminal block system
  • Mounting on DIN rail for simple installation
  • International protection class IP20 for versatile applications.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
55.60 mm
Width
6.20 mm
number of poles
1
Mounting type
Top-hat rail
Item number
18017773

General information

Manufacturer
Phoenix Contact
Category
Residual-current device
Manufacturer no.
2909910
Release date
23.12.2021

Colour

Colour
Grey
Exact colour description
Traffic grey

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Mounting type
Top-hat rail
number of poles
1

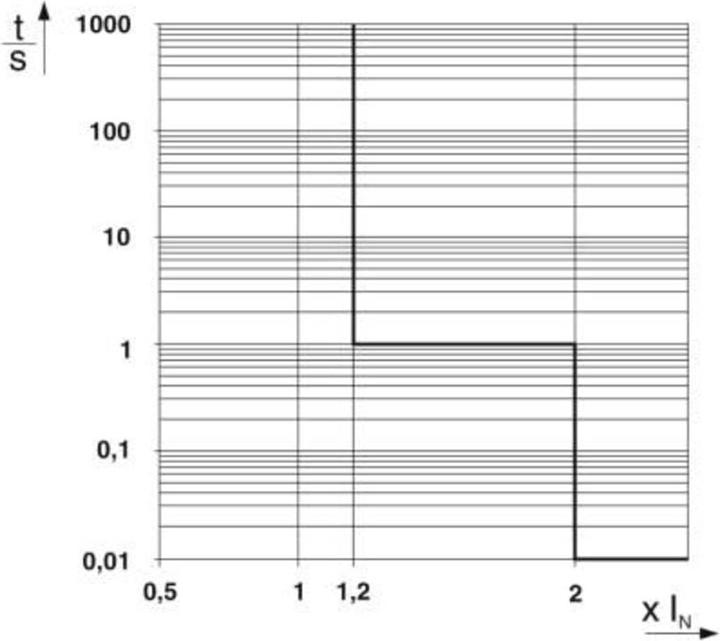

Tripping characteristic
E
Rated current
0.3 A
voltage type
DC
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
55.60 mm
Width
6.20 mm
Height
105.80 mm
Weight
27.64 g

30-day right of return if unopened
24 Months Warranty (Bring-in)
