Panorama Antennas Panorama LPAM-BC3G-26-3SP - Antenna - 4.5 dBi (for 1710 - 2170 MHz)

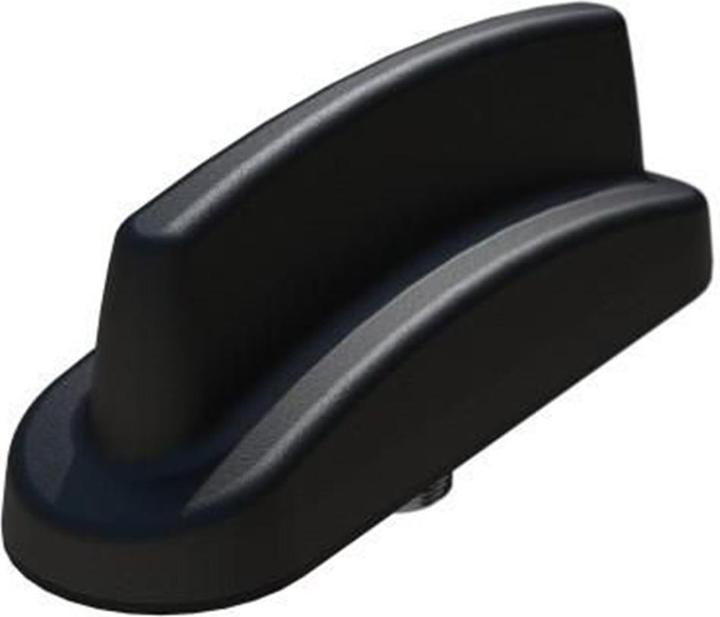

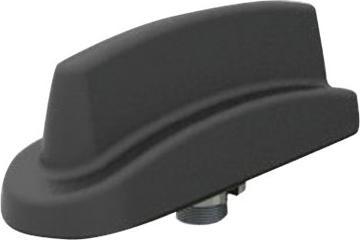

LPAM-BC3G-26-3SP Flat MiMo Mobile Antenna with Low Profile

The LPAM-BC3G-26 series has been designed to provide MiMo Cellular/LTE antenna functionality for IoT and M2M applications. The compact, robust, and flat housing is weatherproof and contains two antenna elements with effective isolation and correlation, covering all common global mobile and LTE bands in the frequency range of 698-960/1710-3800 MHz. The LG version includes an active GPS/GNSS antenna for applications requiring positioning or timing functions.

The antenna can be mounted on a non-conductive plate if needed, offering a simple, quick, secure, and weatherproof installation with the single-hole mounting socket and the acrylic adhesive pad.

Features

Low profile and weatherproof housing
2 x 2 MiMo and optional GPS/GNSS
Robust and cost-effective M2M and IoT solution
Magnetic version available

Electrical Data

LTE Frequencies: 698-960/1710-3800 MHz
Global Positioning: No
LTE MiMo: 2x2
Maximum Input Power (W): 20
Pattern: Omnidirectional
Ground Plate Independent: Yes
Cables and Connectors: 2x 3m RG174 SMA connectors (m)

Mechanical Data

Available Colors: Black
Length (mm): 150
Width (mm): 45
Height (mm): 49
Operating Temperature: -30/+70 °C

Mounting Data

Mounting Type: Panel Mount
Mounting Method: 18 mm (3/4") mounting socket.
