Panorama Antennas LGP-7-38-24-58-1SP - Low Profile Hockey Puck 4G/5G Combination Antenna, SMA Connectors

LGP-7-38-24-58-1SP - Low Profile Hockey Puck 4G/5G Combination Antenna, SMA Connectors

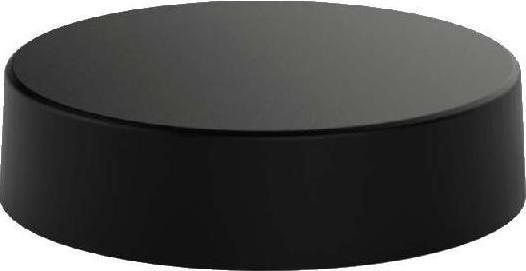

The LGP-7-38 antenna series is a range of very low profile antennas incorporating a wideband cellular element covering 4G/5G frequencies in an ultra compact housing.

Designed to be cost effective, the antennas are completely enclosed in a moulded housing made from weather resistant ASA plastic and are designed for use on plastic or non-conductive surfaces. The range is supplied with cables of 1 m (3') and SMA connectors.

Electrical Data

• Frequency range (MHz): Element 1: 698-960/1710-3800; Element 2: 2400-2485/4900-6000; Element 3: 1562-1612

• Peak gain: Element 1 (698-960 MHz): 0 dBi; Element 1 (1710-3800 MHz): 2 dBi; Element 2 (2.4 GHz): 2 dBi; Element 2 (5.0 GHz): 4 dBi

• Typical VSWR: <2.5:1

• Polarisation: Vertical

• Pattern: Omni-directional

• Impedance: 50 Ω

• Max. input power (W): 20

GPS/GNSS Data

• Frequency range (MHz): 1562-1612

• LNA gain (dB): 26 dB

• Typical current (mA): 15

• Typical voltage: 3-5 V DC

Mechanical Data

• Dimensions (mm): Height: 22.5 (0.88”); Diameter: 80 (3.14”)

• Operating temperature (°C): -40/+85 (-40°F/185°F)

• Material: ASA

• Color: Black

Mounting Data

• Fixing: Panel mount 19 mm (3/4”)

Cable Data

• Cable 1 (cellular): Cable type: RG174 (meets UN ECE 118); Diameter (mm): 2.8 (0.11”); Length (m): 1 (3’ 3”); Termination: SMA (m)

• Cable 2 (WiFi): Cable type: RG174 (meets UN ECE 118); Diameter (mm): 2.8 (0.11”); Length (m): 1 (3’ 3”); Termination: SMA Rev Pol

• Cable 3 (GPS/GNSS): Cable type: RG174 (meets UN ECE 118); Diameter (mm): 2.8 (0.11”); Length (m): 1 (3’ 3”); Termination: SMA(m).
