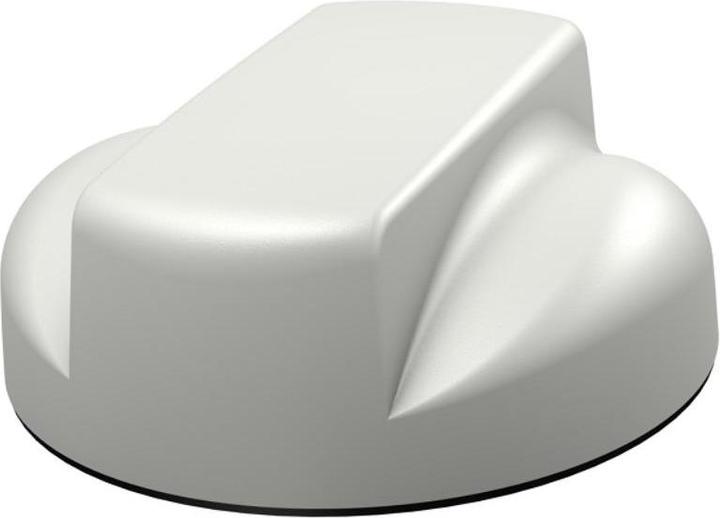

Panorama Antennas LGMM-7-27 antenna

The Panorama LPMM and LGMM low profile MIMO antenna range has been designed with durability and versatility in mind to support the new generation of vehicular LTE routers.

All products in the range contain two isolated high-performance antenna elements covering 698-2700MHz MIMO/diversity at cellular/LTE frequencies.

In addition, the LPMM-7-27-54-58 houses two dual band elements covering 2.3-2.7 and 4.9-6GHz to support MIMO/diversity operation for Wi-Fi and WiMAX.

The LGMM-7-27 comes with a high-performance GPS antenna with an integrated 26dB gain LNA and high-quality filtering to combat noise.

The LGMM-7-27-24-58 consists of five elements; along with the initial two, it offers both the dual band elements covering 2.3-2.7 and 4.9-6GHz to support MIMO/diversity operation for Wi-Fi and WiMAX, as well as the high-performance GPS antenna with an integrated 26dB gain LNA and high-quality filtering to combat noise.

None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on a non-metallic surface.
