Panorama Antennas Directional 4x4MiMo 4G/5G Antenna

WMM4G-6-60-5SP - Directional 4x4 MiMo 4G/5G Antenna, 4x SMA (m)

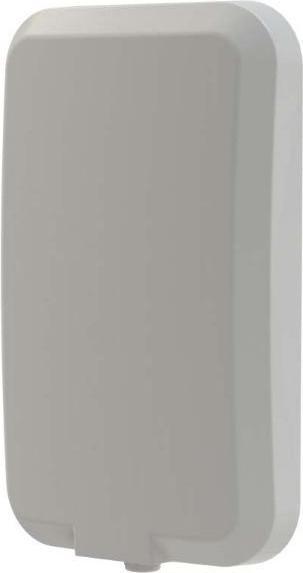

The WMM4G-6-60 is a high-gain 4x4 MiMo directional antenna for 4G and 5G networks. It features four pairs of broadband elements in a single housing and supports CAT18/20 client devices with a fixed location. It offers a peak gain of 6 dBi for 617-960 MHz and 9 dBi for 1710-6000 MHz. The weatherproof housing is designed for wall or mast mounting with the included hardware.

The standard version WMM4G-6-60-5SP comes with 5 meters of low-loss CS32 coaxial cables, eliminating exposed connection ports and simplifying the installation process. The version WMM4G-6-60-05NJ features cables that are 50 cm long with an N socket. This is ideal for installations requiring longer cable runs, where the CS240 or CS400 coaxial cable from Panorama Antennas can be used to minimize cable loss.

The WMM4G-6-60 is a high-value product for network operators and service providers, enhancing connection stability to the router and achieving higher data rates for the user, leading to customer satisfaction and loyalty.

Electrical Data
Frequency Range: 617-960/1710-6000 MHz
Operating Bands: 4G/5G
Radiation Pattern: Directional
Nominal Polarization: +/-45°/Vertical
Peak Gain (without cable loss)*: 617-960 MHz: 6 dBi; 1710-6000 MHz: 9 dBi
Efficiency (without cable loss, all bands): > 60%
Correlation Coefficient (all bands): Max Input Power: 20 Watts

Mechanical Data
Dimensions: Height: 507 mm; Width: 307 mm; Depth: 85 mm
Operating Temperature: -40°C/+80°C
Material: ASA
Color: White
IP Protection Class: IP66
Radome Material Certifications: UL94-HB, UL746C-f2
Weight: 5400 g
Wind Resistance: 55 m/s
Typical Wind Load at 45 m/s: 200 N

Mounting Data
Mounting: Wall Mount/Flush Wall Mount/Mast Mount.
