Orno The screen of the even COSMO telephone is grey

Cyfral's analog intercom systems are widely used and are most commonly installed in single-family homes, small businesses, and public facilities such as kindergartens, schools, hospitals, and medical clinics. The Cosmo intercom utilizes bidirectional signal transmission, while the Uniphone is connected to the call panel via a two-wire line. This line transmits the following signals: call (ringing), acoustic (voice), and electromagnetic impulse control signal.

Key features: easy installation, support for RFID tags, the option to add an additional Uniphone, special screws that prevent unauthorized access to the inside of the panel, weather resistance – the aluminum front cover is protected by anodizing, and the housing is made of ABS plastic, aluminum collar buttons, compact dimensions, illuminated nameplates.

Technical specifications:

• Supply voltage: 230V AC / 11.5V AC
• Number of connection wires: 2
• Number of supported inputs: 2
• Intercom: No
• Expandable: No
• Connection type: Wired
• Number of tenants: 1
• Cassette housing material: Aluminum
• Surface-mounted cassette protective cover: Yes
• Uniphone number of chimes: 1
• Hands-free: No
• External dimensions of the cassette (H x W x D): 150 x 69 x 38 mm
• Uniphone dimensions (H x W x D): 220 x 82 x 58 mm

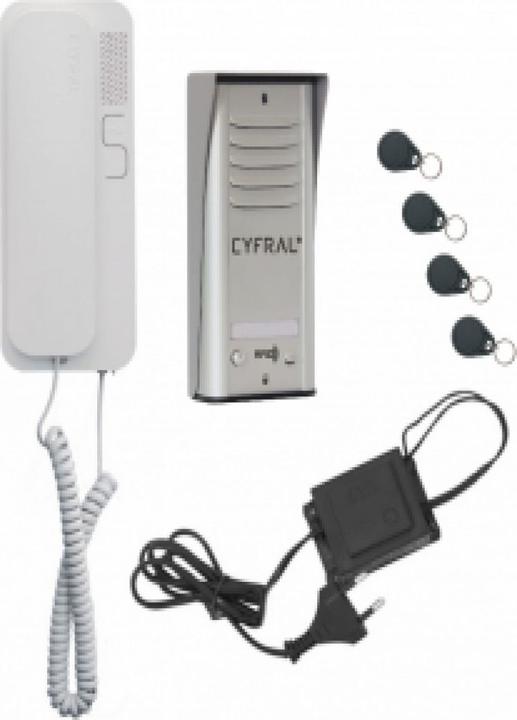

The intercom includes: Cosmo unit with a roof attachment, white SMART Uniphone with an additional button, power supply 11.5 V 800 mA, four RFID tags, mounting key.
