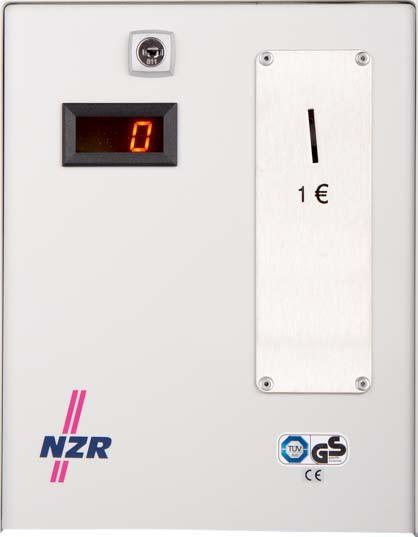

NZR Coin Acceptor ZMZ 0205 Standard Value

Manufacturer: NZR
Designation: Electronic Coin Acceptor
Type: ZMZ 0205 Standard Value
Execution: Time-dependent
Nominal Voltage: 230 V
Power Consumption: 2 VA
Current Type: AC
Control: Electronic
Insertion: Value Token
Counterfeit Return: No
Display: 1-digit LED
Height: 238 mm
Width: 185 mm
Depth: 150 mm

The time coin acceptor ZMZ0205 with standard value token insertion is adjustable by the customer. The release time and the number of coins (maximum of 2) can be set. After inserting the coins, the display shows the number of coins entered (maximum of 2). Inserting a second coin can extend the runtime by one set time unit. Further coin insertions do not affect the runtime. After the first coin is inserted, the main relay is activated. The last 9 minutes or seconds are displayed in a blinking manner.

The electronically controlled coin acceptor checks the size of the coin without returning counterfeit money. Insertion: NZR standard value token. The base time is adjustable from 1 second to 65 hours, with the smallest adjustable time unit being 1 second. The device accepts up to two coins, and the time setting is easily done via dip switches.

The coin container has a capacity of 80 pieces at 0.50 euros each. Connection is made simple through a 5-pole plug connection. The powder-coated stainless steel housing (RAL 7035 light gray) is equipped with a cylinder safety lock.

Technical Data:
Power Supply: 1x230V
Power Consumption: 2 VA
Switching Current: 16 A (AC1)
Output Relay: Normally Closed
Weight: 3.0 kg
Dimensions (W x H x D): 185 x 238 x 150 mm
EAN: 4048652005147.
