Niedax Clamping adapter KKAT 300

Niedax Clamp Adapter KKAT 300

Manufacturer: Niedax
Description: Clamp Adapter
Type: KKAT 300
Material: Steel
Stainless Steel, Pickled: No
Material Quality: Other
Surface Protection: Hot-dip Galvanized
Operating Temperature: -20 to 120 °C

The Niedax Clamp Adapter KKAT 300 is designed for a 90° arm arrangement on T-beams with a flange width of 300 mm. It comes with mounting accessories for attaching the arm to the clamp adapter. The required clamping accessories for T-beams, such as 2 x GM 5030 M10 F, 2 x SK 10X... (= 8.8) and 2 x HSK..., must be ordered separately.

Generally, the arms must first be attached to the adapter. The clamping attachment should be symmetrical, and the screws should be placed as close as possible to the flange. The load capacity specifications of the used arms apply. For the clamp adapters, these load capacity specifications are only valid if the surfaces of the T-columns and the profile clamps in the clamping area are made of steel or galvanized steel.

If the construction surface at a clamping connection has a paint coating, it must be removed, as otherwise the load capacity cannot be guaranteed. There is a risk of slipping! For steel columns with a fire protection coating, this must not be removed without consultation and written approval from the client or construction management. In any case, the introduction of loads into the structure must be coordinated with the construction planning or management.

For hanging arm and wall arms: KTCL..., KTC...
For hanging arm and wall arms: KTAC..., KTAL..., KTAM..., KTA...

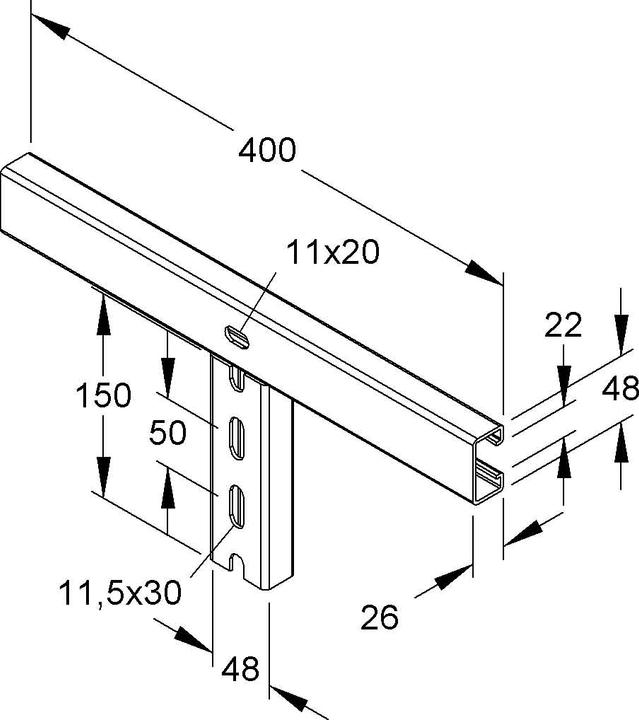

Dimensions (approx. measurements) H x W: 198 x 400 mm
Load Capacity F at L/2 of the arm: 1.5 kN
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
Flange thickness of the beam in mm: [Customer specification required]
EAN: 4013339815708.
