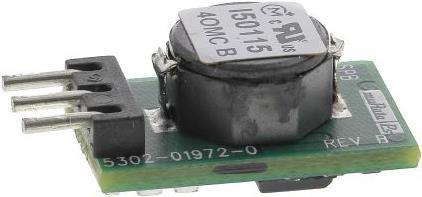

Murata Switching Regulator 7-36Vin 5Vo 1.5A

Output voltage: 5V dc
Number of outputs: 1
Output current: 1.5A
Rated power: 7.5W
Mounting type: Through-hole mounting
Case: SIP
Minimum temperature: -40°C
Maximum temperature: +85°C
Efficiency: 90.5%
Load regulation: ±0.25%
Line regulation: ±0.25%
Ripple and noise voltage: 75mV ss
Length: 10.4mm

UL/EN/IEC 60950-1, 2nd edition. Non-isolated DC/DC converter with single output Murata 1.5 A – OKI series. The PS OKI-78SR series from Murata is based on a single SIP module with inline housing and dimensions of 10.4 x 16.5 mm. These DC/DC converters are non-isolated switch-mode regulators for embedded applications. Two rated voltages are available, each with a maximum output current of 1.5 A. Based on a fixed frequency buck regulator topology, the high efficiency ensures low heat generation and minimal electrical noise, with no external components required. The extremely wide input voltage range is from 7 to 36 V dc. Protection features include short-circuit current limiting. The OKI-78SR switch-mode regulator is designed to meet all standards and certification requirements. The regulations for hazardous materials according to RoHS-6 (lead-free) are met as standard. Features and benefits: Particularly wide input range of 7 to 36 V dc, fixed outputs of 3.3 or 5 V dc up to 1.5 A, vertical or horizontal SIP mounting, compact housing dimensions, direct replacement "without heatsink" for linear regulators of the 78xx series with 3 pins, high efficiency without external components, short-circuit protection, excellent performance under thermal derating conditions.
