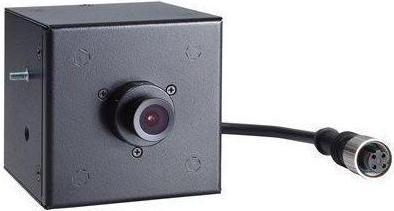

Moxa VPORT P06HC-1V60M-CT - EN 50155, HD image, cubic IP camera with M12 connector

Ratings
BrandMore from Moxa
Delivered between Tue, 2.9. and Tue, 7.10.
free shipping

Product details

Our range of IP cameras includes dome and box cameras as well as cameras with a robust design. They fulfil parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a range of applications.

EN 50155, HD image, cubic IP camera with M12 connection, PoE, 6.0 mm lens, -40 to 55°C operating temperature, conformal coating

Ethernet interface
PoE ports (10/100BaseT(X), M12 D-coded 4-pin socket): 1

Ethernet Software functions

  • Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security functions

  • Password: Password protection at user level
  • Filter: IP address
  • Encryption: HTTPS

Performance parameters

  • Number of power inputs: 1
  • Input power source: PoE (IEEE 802.3af)
  • Input current: 0.17 A @ 48 VDC

Camera features

  • Sensor: 1/2.7-in HD progressive scan CMOS
  • Lens: f=6.0 mm, F1.6, Diagonal 60°, Horizontal 55°, Vertical 29°
  • Minimum illumination: Colour: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec.)
  • Synchronisation: Internal
  • White balance: ATW/AWB
  • Electronic shutter: Auto (1/30 to 1/25000 sec.)
  • S/N ratio: Maximum 50 dB (AGC off; DNR on)
  • DNR (digital noise reduction): Built-in DNR
  • WDR (Wide Dynamic Range): 110 dB
  • Flickerless Control: Automatic, 50 Hz, 60 Hz modes
  • Image Rotation: Flip, Mirror, and 180° rotation
  • Image Adjustment: Manual adjustment with saturation, sharpness and contrast
  • AGC (automatic gain control): 2X, 4X, 8X, 16X, 32X, 64X
  • BLC (backlight compensation): High/Medium/Low

Video interface

  • Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
  • Video output: via Ethernet
  • Video streams: 3 independent H.264 or MJPEG video streams
  • Video resolution and FPS (frames per second)
  • Video display

DynaStream™ support for automatically changing the video frame rate
CBR Pro™ for good image quality for transmissions with limited...

Key specifications

Network camera type
Outdoor surveillance camera
Power supply
PoE
Type of memory
Memory card
Item number
47199318

General information

Manufacturer
Moxa
Category
Network camera
Manufacturer no.
VPORT P06HC-1V60M-CT
Release date
12.7.2024

Camera properties

Network camera type
Outdoor surveillance camera
Camera design
Dome camera
Camera resolution
2.70 Mpx
Viewing angle (H)
55°
Viewing angle (V)
29°
Shutter speed
1/32500 - 1/25 (50 Hz)
Remote access
App

Data storage properties

Type of memory
Memory card

Application range

Application range
Network

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE)
