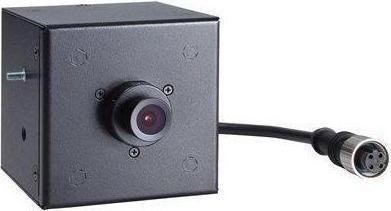

Moxa VPORT P06HC-1V36M-CT - EN 50155, HD image, cubic IP camera with M12 connector, PoE

Ratings
BrandMore from Moxa
Delivered between Sat, 30.8. and Sat, 11.10.
free shipping

Product details

Our range of IP cameras includes dome and box cameras as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a range of applications.

Key specifications include:

  • EN 50155 compliance
  • HD image quality
  • Cubic IP camera with M12 connection
  • Power over Ethernet (PoE)
  • 3.6 mm lens
  • Operating temperature: -40 to 55°C
  • Conformal coating

Ethernet interface features:

  • PoE ports (10/100BaseT(X), M12 D-coded 4-pin connector)

Ethernet software features:

  • Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security functions:

  • Password protection at user level
  • IP address filtering
  • HTTPS encryption

Performance parameters:

  • Number of power inputs: 1
  • Source of input power: PoE (IEEE 802.3af)
  • Input current: 0.17 A @ 48 VDC

Camera features:

  • Sensor: 1/2.7-in HD progressive scan CMOS
  • Lens: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°
  • Minimum illumination: Colour: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec.)
  • Synchronization: Internal
  • White balance: ATW/AWB
  • Electronic shutter: Auto (1/30 to 1/25000 sec.)
  • Signal-to-noise ratio: Maximum 50 dB (AGC off; DNR on)
  • Digital Noise Reduction: Built-in DNR
  • Wide Dynamic Range: 110 dB
  • Flickerless Control: Automatic, 50 Hz, 60 Hz modes
  • Image rotation: Flip, Mirror, and 180° rotation
  • Image adjustment: Manual adjustment with saturation, sharpness, and contrast
  • Automatic gain control: 2X, 4X, 8X, 16X, 32X, 64X
  • Backlight compensation: High/Medium/Low

Video interface:

  • Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
  • Video output: via Ethernet
  • Video streams: 3 independent H.264 or MJPEG video streams
  • Video viewing: DynaStream™ support for automatically changing the video frame rate, CBR Pro™ for good image quality for transmissions with limited bandwidth.

Key specifications

Network camera type
Surveillance camera indoor
Power supply
PoE
Lens type
Prime lens
Item number
46884075

General information

Manufacturer
Moxa
Category
Network camera
Manufacturer no.
VPORT P06HC-1V36M-CT
Release date
25.6.2024

Camera properties

Network camera type
Surveillance camera indoor
Camera design
Dome camera
Camera resolution
2.70 Mpx
Viewing angle (H)
94°
Viewing angle (V)
47°
Lens type
Prime lens
Focal length
3.6 mm
Optical zoom
16 x
Digital zoom
64 x
Image sensor type
CMOS
Refresh rate
25000 FPS
Shutter speed
1/32500 - 1/25 (50 Hz)

Application range

Application range
Network

Power supply

Power supply
PoE
