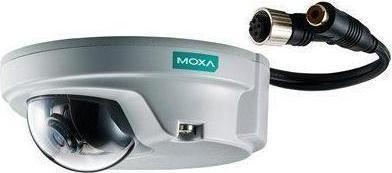

Moxa VPORT P06-1MP-M12-CAM80 - EN50155, HD, compact IP camera, M12 connection, 1 audio input

1024 x 768 pixels
Ratings
BrandMore from Moxa
Delivered between Fri, 8.8. and Fri, 12.9.

Product details

Our range of IP cameras includes dome and box cameras, as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and are therefore reliable, delivering excellent image quality suitable for a range of applications.

Key specifications include:

  • EN50155, HD, compact IP camera, M12 connection, 1 audio input, PoE, 8.0 mm lens, operating temperature from -25 to 55°C.

Ethernet interface:

  • PoE ports (10/100BaseT(X), M12 D-coded 4-pin socket): 1

Ethernet software features:

  • Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, NTP Client, DNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS.

Security functions:

  • Password protection at user level
  • IP address filtering
  • HTTPS encryption

Power parameters:

  • Number of power inputs: 1
  • Input power source: PoE (IEEE 802.3af)
  • Input current: 0.12 A @ 48 VDC

Camera features:

  • Sensor: 1/2.7-inch HD progressive scan CMOS
  • Lens: f=8.0 mm, F1.6, diagonal 45°, horizontal 40°, vertical 22°
  • Camera angle: Pan: ±30°, tilt: 0° to 90° (manually controlled)
  • Minimum illumination: Colour: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
  • Synchronization: Internal
  • White balance: ATW/AWB
  • Electronic shutter: Auto, fixed (1/30 to 1/25000 s)
  • S/N ratio: Maximum 50 dB (AGC off; DNR on)
  • DNR (digital noise reduction): Built-in 2D/3D DNR
  • WDR (Wide Dynamic Range): 110 dB
  • Flicker-free control: Automatic, 50 Hz, 60 Hz modes
  • Image rotation: Flip, mirror, and 180° rotation
  • Image adjustment: Manual adjustment with saturation, sharpness, and contrast
  • AGC (automatic gain control): 2X, 4X, 8X, 16X, 32X, 64X
  • BLC (backlight compensation): High/Medium/Low

Video interface:

  • Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
  • Video output: Via Ethernet
  • Video streams: 3 independent H.264 or MJPEG video streams

Video display:

  • DynaStream™ support for automatically changing the video frame rate
  • CBR Pro™ for good image quality for transmissions with limited bandwidth.

Key specifications

Network camera type
Surveillance camera indoor
Power supply
PoE
Advanced functions
Motion sensor, Speakers
Item number
46906853

General information

Manufacturer
Moxa
Category
Network camera
Manufacturer no.
VPORT P06-1MP-M12-CAM80
Release date
26.6.2024

Camera properties

Network camera type
Surveillance camera indoor
Camera design
Dome camera
Camera resolution
1 Mpx
Max. picture resolution
1024 x 768 pixels
Viewing angle (H)
40°
Viewing angle (V)
90°
Viewing angle (D)
40°
Focal length
8 mm
Digital zoom
16 x
Refresh rate
50 FPS
Shutter speed
1/30 - 1/25000 s
Tilt range
0 - 90°
Advanced functions
Motion sensor, Speakers
Audio formats
H.264
Protection type (IP code)
IP55

Application range

Application range
Network

Power supply

Power supply
PoE
