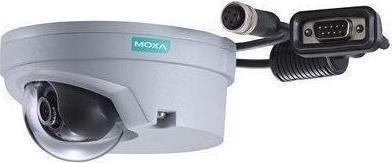

Moxa VPORT 06-2L36M - EN 50155, FHD, H.264MJPEG IP camera with M12 connector, 1 audio input, 24 VDC, 3

Our range of IP cameras includes dome and box cameras, as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a variety of applications.

This FHD, H.264/MJPEG IP camera features an M12 connector, 1 audio input, operates on 24 VDC, and has a 3.6 mm lens with an operating temperature range of -25 to 55°C.

Memory:

• microSD slot (SDXC)

Input/output interface:

• Digital input channels: 1
• Digital inputs: +13 to +30 V for state 1, -30 to +1 V for state 0
• Max input current: 8 mA
• Connectors: DB9 connector

Ethernet interface:

• 10/100BaseT(X) ports (M12 D-coded 4-pin socket): 1

Software functions:
Protocols include TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, NTP-Client, DNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS, and SIP.

Security functions:

• Password protection at user level
• IP address filtering
• Encryption: HTTPS, SSH

Power parameters:

• Number of power inputs: 1
• Input voltage: 12/24 VDC
• Input current: 0.86 A @ 12 VDC, 0.35 A @ 24 VDC
• Power connection: DB9 connector

Camera features:

• Sensor: 1/3-in 1080P progressive scan CMOS
• Lens: f=3.6 mm, F1.6, diagonal 99°, horizontal 70°, vertical 39°
• Minimum illumination: Colour: 0.2 lux at F1.2 (Gain High, 50 IRE, 1/30 sec.)
• Synchronization: Internal
• White balance: ATW/AWB
• Electronic shutter: Auto, fixed (1/30 to 1/25000 sec.)
• Signal-to-noise ratio: Maximum 50 dB (AGC off; DNR on)
• DNR (Digital Noise Reduction): Built-in 2D/3D DNR
• WDR (Wide Dynamic Range): 100 dB
• AGC (Automatic Gain Control): 2X, 4X, 8X, 16X
• Flickerless Control: Automatic, 50 Hz, 60 Hz modes
• Image rotation: Flip, Mirror, 90°, 180°, 270° rotation
• Image adjustment: Manual adjustment with saturation, sharpness, and contrast
• Camera angle: Pan: ±15°, tilt: 0° to 90° (manually controlled)

Video interface:

• Video compression: H.264 (ISO/IEC...).
