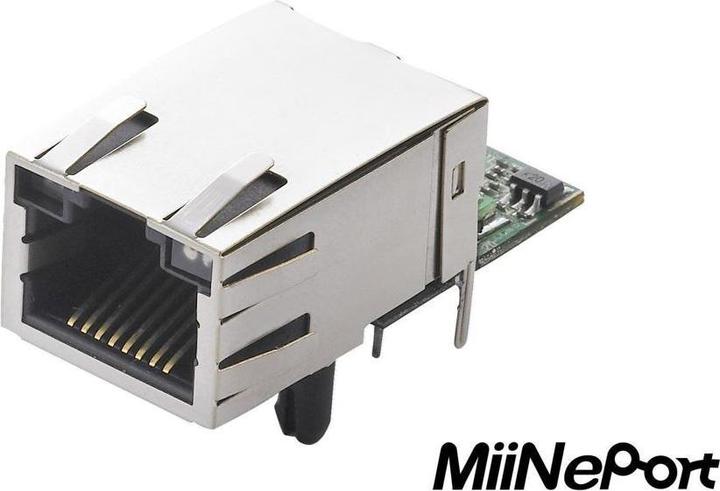

Moxa MIINEPORT E1 - Embedded device server for TTL devices, drop-in module, 10100M with RJ45 connect

Introduction
The MiiNePort E1 embedded device servers from Moxa are designed for manufacturers looking to enhance their serial devices with sophisticated network connectivity while minimizing integration efforts. The MiiNePort E1 is based on Moxa's second-generation SoC, MiiNe, which supports 10/100 Mbit/s Ethernet, serial baud rates of up to 921.6 Kbit/s, a versatile selection of ready-to-use operating modes, and requires minimal power. Utilizing Moxa's innovative NetEZ technology, the MiiNePort E1 can quickly convert any device with a standard serial interface into an Ethernet-enabled device. Additionally, the MiiNePort E1 is the size of an RJ45 connector, making it easy to integrate into virtually any existing serial device.

Moxa's Second-Generation SoC
The MiiNe has been developed to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E1, which uses the MiiNe for its SoC, is one of the smallest embedded device servers in the world and has the lowest power consumption of all similar products. The MiiNe features the following:

• Designed for 1- or 2-port serial-to-Ethernet applications
• Utilizes a 32-bit Arm-7 core
• Employs Moxa's own advanced UART technology
• Integrated 2 MB Flash and 4 MB SDRAM memory

NetEZ Technology
Moxa's NetEZ technology makes the MiiNePort E1 one of the most user-friendly embedded device servers, as it promises ease of use with minimal integration effort. Moxa's NetEZ technology provides manufacturers of serial devices with a range of powerful tools for integrating Ethernet capability into serial devices. These tools include EXTrigger, MCSC (multi-channel serial communication), Serial Communication Mode (SCM), and AutoCFG. With EXTrigger...
