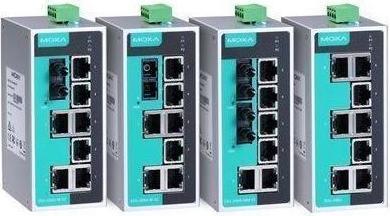

Moxa EDS-208A - Unmanaged Ethernet switch with 8 10100BaseT(X) ports

8 ports
Ratings
Delivered between Sat, 11.7. and Tue, 11.8.
free shipping

Product details

Introduction
The EDS-208A series industrial Ethernet switches with 8 ports support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half duplex, MDI/MDI-X auto-sensing. The EDS-208A series features redundant power inputs of 12/24/48 VDC (9.6 to 60 VDC) that can be connected simultaneously to live DC power sources. These switches are designed for harsh industrial environments, such as maritime applications, railway stations, highways, mobile applications, or hazardous locations, complying with FCC, UL, and CE standards.

The EDS-208A switches are available with a standard operating temperature range of -10 to 60 °C or with an extended operating temperature range of -40 to 75 °C. All models undergo a 100% burn-in test to ensure they meet the specific requirements of industrial automation control applications. Additionally, the EDS-208A switches feature DIP switches to enable or disable broadcast storm protection, providing an extra layer of flexibility for industrial applications.

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector):

  • EDS-208A/208A-T models: 8
  • EDS-208A-M-SC/M-ST/S-SC models: 7
  • EDS-208A-MM-SC/MM-ST/SS-SC models: 6

All models support:

  • Automatic speed negotiation
  • Full/Half duplex mode
  • Automatic MDI/MDI-X connection

100BaseFX Ports (Multi-Mode SC connector):

  • EDS-208A-M-SC models: 1
  • EDS-208A-MM-SC models: 2

100BaseFX Ports (Multi-Mode ST connector):

  • EDS-208A-M-ST models: 1
  • EDS-208A-MM-ST models: 2

100BaseFX Ports (Singlemode SC connector):

  • EDS-208A-S-SC models: 1
  • EDS-208A-SS-SC models: 2

Standards:

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X) and 100BaseFX
  • IEEE 802.3x for flow control.

Key specifications

Management
Unmanaged
Max. port speed
100 Mbit/s

General information

Item number
46302892
Manufacturer
Moxa
Category
Network switches
Manufacturer No.
EDS-208A
Release date
4.6.2024

Switch properties

Number of ports
8 ports
Management
Unmanaged
switching layer
Layer 2

Network connections

Max. port speed
100 Mbit/s
Max. port speed RJ45
100 Mbit/s

Application range

Application range
Industry

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70
