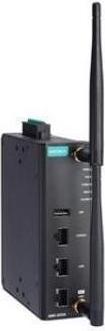

Moxa AWK-3252A-US - 802.11abgnac access point, US band, -25 to 60C operating temperature

802.11a/b/g/n/ac access point, US band, -25 to 60°C operating temperature

WLAN Interface

WLAN Standards:
2.4 GHz: 802.11b/g/n with 256 QAM support
5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
Frequency Band for US (20 MHz operating channels):
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.745 to 5.825 GHz (5 channels)
5.500 to 5.700 GHz (11 channels)
5.260 to 5.320 GHz (4 channels)
Wireless Security:
WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2/WPA3-Personal
Transmission Rate:
2.4 GHz:
802.11b: 1 to 11 Mbps
802.11g: 6 to 54 Mbps
802.11n: 6.5 to 400 Mbps
5 GHz:
802.11a: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps
802.11ac: 6.5 to 867 Mbps
Transmitter Power for 802.11a (Dual Chain):
25±1.5 dBm @ 6 Mbps
23±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz, Dual Chain):
25±1.5 dBm @ MCS0 20 MHz
22±1.5 dBm @ MCS7 20 MHz
24±1.5 dBm @ MCS0 40 MHz
22±1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ac (Dual Chain):
25±1.5 dBm @ MCS0 20 MHz
22±1.5 dBm @ MCS8 20 MHz
24±1.5 dBm @ MCS0 40 MHz
21±1.5 dBm @ MCS9 40 MHz
23±1.5 dBm @ MCS0 80 MHz
20±1.5 dBm @ MCS9 80 MHz
Transmitter Power for 802.11b (Dual Chain):
29±1.5 dBm @ 1 Mbps
29±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g (Dual Chain):
29±1.5 dBm @ 6 Mbps
26±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz, Dual Chain):
28±1.5 dBm @ MCS0 20 MHz
25±1.5 dBm @ MCS7 20 MHz
28±1.5 dBm @ MCS0 40 MHz
25±1.5 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz):
Typ. -88 @ 6 Mbps
Typ. -72 @ 54 Mbps
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz):
Typ. -88 dBm @ MCS0 20 MHz
Typ. -68 dBm @ MCS7 20 MHz
Typ. -84 dBm @ MCS0 40 MHz
Typ. -66 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ac:
Typ. -88 dBm @ MCS0 20 MHz
Typ. -65 dBm @ MCS8 20 MHz
Typ. -85 dBm @ MCS0 40 MHz
Typ. -60 dBm @ MCS9 40 MHz
Typ. -81 dBm @ MCS0 80 MHz
Typ. -55 dBm @ MCS9 80 MHz
Receiver Sensitivity for 802.11b...
