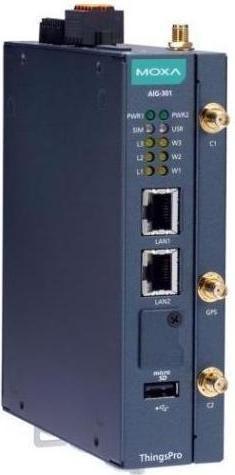

Moxa AIG-301-T-AP-AZU-LX - 2-port Modbus to Azure advanced IIoT gateways with Arm Cortex-A7 dual-core 1 G

Delivered between Tue, 9.9. and Tue, 21.10.
free shipping

Product details

Moxa's advanced IIoT gateways are designed for distributed and unmanned locations in harsh operating environments. The IIoT gateways provide seamless integration with various cloud applications, such as Azure, and enable easy data collection and analysis from industrial devices. They are programmable and offer versatile custom solutions that meet the specific requirements of different industrial applications.

2-Port Modbus to Azure advanced IIoT gateways with Arm Cortex-A7 Dual-Core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for the Asia-Pacific region, operating temperature range of -40 to 70°C.

Computer

  • CPU: Armv7 Cortex-A7 Dual-Core 1 GHz
  • DRAM: 2 GB DDR3L
  • Pre-installed storage: 16 GB eMMC
  • Pre-installed operating system: Moxa Industrial Linux (Debian 9, Kernel 4.4)
  • Number of supported tags: 2048

Computer Interface

  • TPM: TPM v2.0
  • USB 2.0: USB 2.0 Hosts x 1, Type-A ports
  • Wi-Fi antenna connector: RP-SMA x 2
  • Cellular antenna connector: SMA x 2 (except AIG-301-AZU-LX/T-AZU-LX models)
  • GPS antenna connector: SMA x 1 (except AIG-301-AZU-LX/T-AZU-LX models)
  • Expansion slots: AIG-301-CN-AZU-LX/T-CN-AZU-LX: mPCIe slot x 2; All other models: mPCIe slot x 1
  • Buttons: Reset button; Factory reset
  • Digital input: DIs x 4
  • Digital output: DOs x 4
  • Number of SIMs: 2
  • SIM format: Nano (except AIG-301-AZU-LX/T-AZU-LX models)

Ethernet Interface

  • Magnetic isolation protection: 1.5 kV (built-in)
  • 10/100/1000BaseT(X) ports (RJ45 connector): 2

Ethernet Software Features

  • Industrial protocols: Modbus TCP Client (Master); Generic MQTT; Azure IoT Device; AWS IoT Core; Azure IoT Edge; OPC UA Server; Sparkplug B Client
  • Configuration options: Web console (HTTP/HTTPS); ThingsPro Proxy Utility
  • Time management: NTP Server/Client; GPS.

Key specifications

Number of ports
2 Ports
Network connections
RJ45 (2x)
Item number
46417303

General information

Manufacturer
Moxa
Category
Routers
Manufacturer no.
AIG-301-T-AP-AZU-LX
Release date
10.6.2024

Mobile internet properties

SIM card type
Nano SIM

Network interface

Number of ports
2 Ports
Network connections
RJ45 (2x)

Additional connections

USB ports
USB-A

Voluntary climate contribution

CO₂-Emission
Climate contribution

30-day right of return
24 Months Warranty (Bring-in)
