Minew Technologies G1 - Bluetooth 5.0 WiFi Gateway

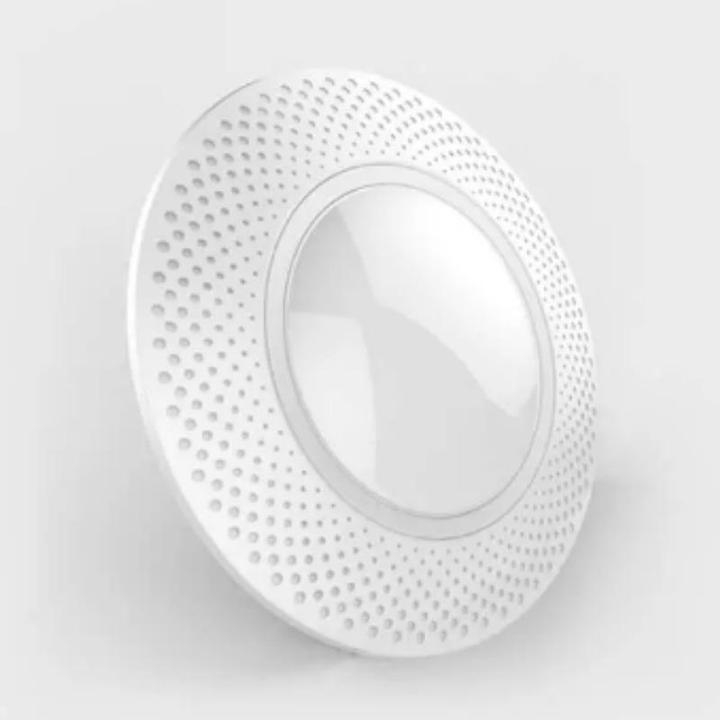

Minew G1 - Bluetooth 5.0 WiFi Gateway

The Minew G1 is a Bluetooth 5.0 Low Energy (BLE) gateway for Wi-Fi/Ethernet connectivity without the need for smartphones or apps. The G1 gateway collects data from iBeacon, Eddystone, BLE sensors, and other BLE devices, then transmits it via MQTT over the SSL/TLS/HTTP/HTTPS protocol through Wi-Fi/Ethernet/external 3G/4G USB dongles to a local server or remote cloud server.

Users can easily configure the G1 gateway through a very simple web interface. It also supports batch configuration.

General:

• Connects to the cloud with a 3G/4G USB dongle
• Data stored on TF card or Udisk
• Supports AWS/Azure/ARM mBed IoT Cloud
• Input with DC 5.0 V, 1 A, Micro-USB
• Firmware upgrade via OTA
• Supports HTTP (SSL/TLS)/MQTT (SSL/TLS & Proxy)/TCP
• Operating temperature: -25°C to 65°C
• Batch configuration tool available

WIFI and Ethernet:

• 575 MHz 32-bit application processor
• 300 Mbps PHY data rate, 802.11b/g/n WiFi
• 2x USB 2.0 host ports and 1x TF card slot
• 128 Mbyte 16-bit DDR2 RAM
• 16 Mbyte SPI NOR Flash
• RGB LED strip for status indication
• OpenWrt, Linux distribution for embedded devices
• Supports WiFi failover and multi-higher-level AP configuration
• 10/100 Ethernet with 802.3af PoE

Bluetooth:

• 64 MHz 32-bit processor
• Built-in power amplifier chip for precise BLE sampling
• Minimum Bluetooth 4.0 (only for BLE).
