N5-360 Antenna, 4.9 to 6.4 GHz

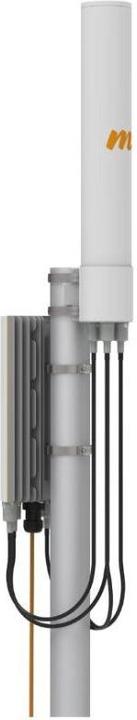

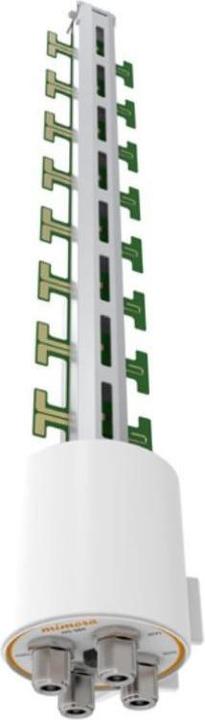

We introduce the industry's first 360° antenna with 4 ports and beamforming, specifically designed for the Mimosa A5c access point. The unique design of the N5-360 antenna features quad-180° overlapping antenna polarizations, effectively doubling the coverage of Mimosa MicroPoP installations with a 3 dB beamforming gain. The N5-360 enhances throughput through balanced dual-stream coverage across a 360° azimuth. Operating without performance loss, the N5-360 functions over a wide frequency range of 4.9 to 6.4 GHz and supports licensed frequencies for public safety and other extended frequencies where regionally permitted.

The package includes:

• Antenna
• 2 metal rings
• 4 pigtail N-connectors - N-connectors

Connections and Interfaces:

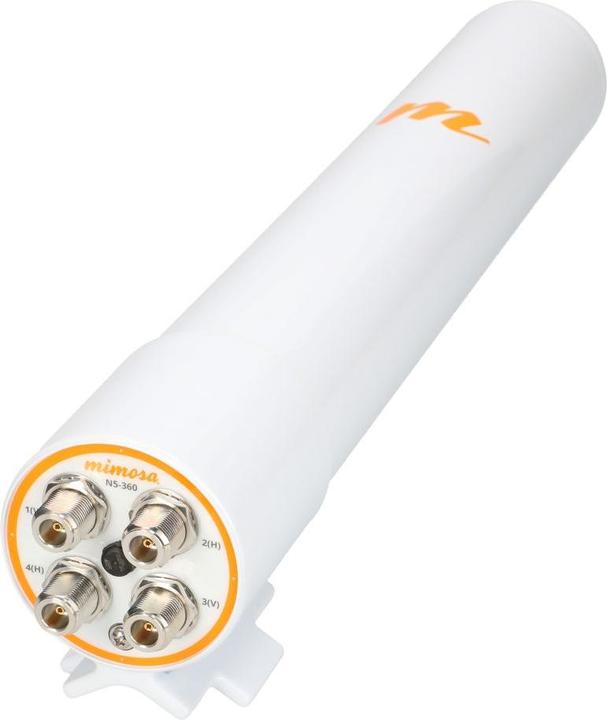

• RF Connectors: (4) N-jack

Physical Properties:

• Wind Load [km/h]: 160
• Application Area: Outdoor
• Weight [kg]: 1.1
• Depth [mm]: 80
• Width [mm]: 80
• Height [mm]: 492

Wireless Features:

• Cross-Polar Isolation [dB]: 25
• MIMO, SISO: 2 x 2
• Polarization: VH
• Wireless Frequency: 5 GHz
• Azimuth Beamwidth (-6dB) [°]: 360.8
• Type of Antenna: Omnidirectional
• Antenna Gain [dBi]: 15.
