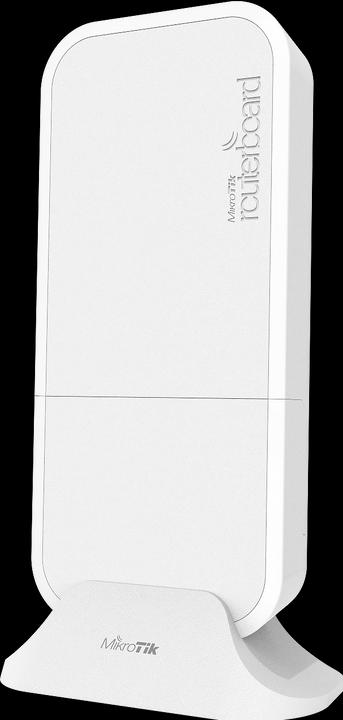

MikroTik wAP R ac

MikroTik wAP R ac with 4-core 710 MHz CPU, 128 MB RAM, without LTE modem.

The wAP ac LTE is a powerful wireless dual-band access point with LTE backup and two Gigabit Ethernet ports, available in several versions. Based on the popular wAP form factor, the device is weatherproof and suitable for outdoor and indoor installations. You can mount it on walls, ceilings, poles, or on a flat surface.

The device is powered by a 4-core CPU with 716 MHz and 128 MB of RAM, designed for high loads. It features two Gigabit Ethernet ports, a 2.4 GHz dual-chain, and a 5 GHz dual-chain Wi-Fi for simultaneous coverage of two access points. It has a DC power jack and supports 10-57 V power supply via passive PoE or 802.3af/at. For easier operation, the device now includes a micro-SIM slot.

Three models are available:

• wAP ac LTE Kit (RBwAPGR-5HacD2HnD) with R11e LTE modem for international bands 1, 2, 3, 7, 8, 20, 38, and 40
• wAP ac 4G Kit (RBwAPGR-5HacD2HnD) with R11e 4G modem for international and USA bands 3, 7, 20, 31, 41n, 42, and 43
• wAP R ac (RBwAPGR-5HacD2HnD) without LTE card

Included parts:

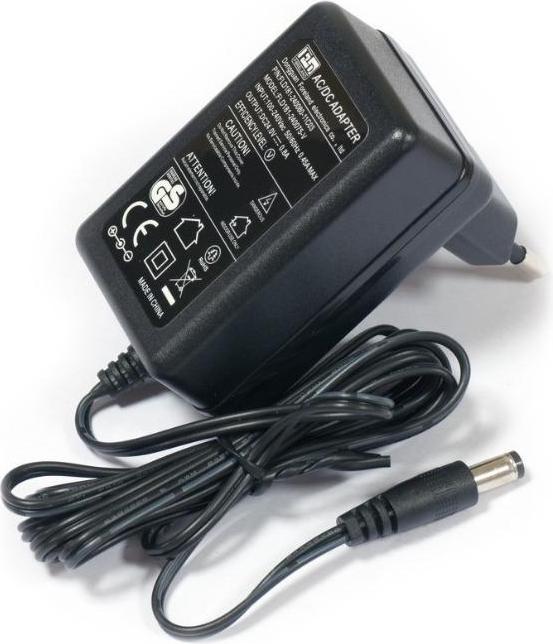

• 24 V, 0.8 A power supply
• Screw sets
• Table stand
• Metal ring
• Plastic straps
• Mounting base
• Gigabit PoE injector
• Ceiling mount

Product code: RBwAPGR-5HacD2HnD
CPU: 4-core IPQ-4018 with 716 MHz
RAM size: 128 MB
Storage: 16 MB Flash

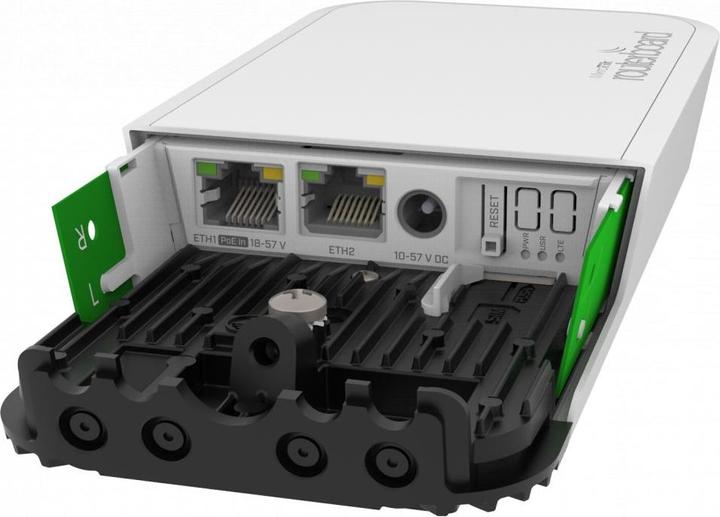

10/100/1000 Ethernet ports: 2
Wi-Fi: 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain
Wi-Fi regulations: The specific frequency range is limited by country-specific regulations
Wi-Fi antenna max gain: 2.5 dBi
LTE antenna max gain: 4 dBi (with u.FL connector)
Antenna beamwidth: 360°
LTE category: -
3G category: -
2G category: -
Micro-SIM slot: 1
Supported input voltage: DC jack 10 - 57 V
PoE in: Passive PoE.
