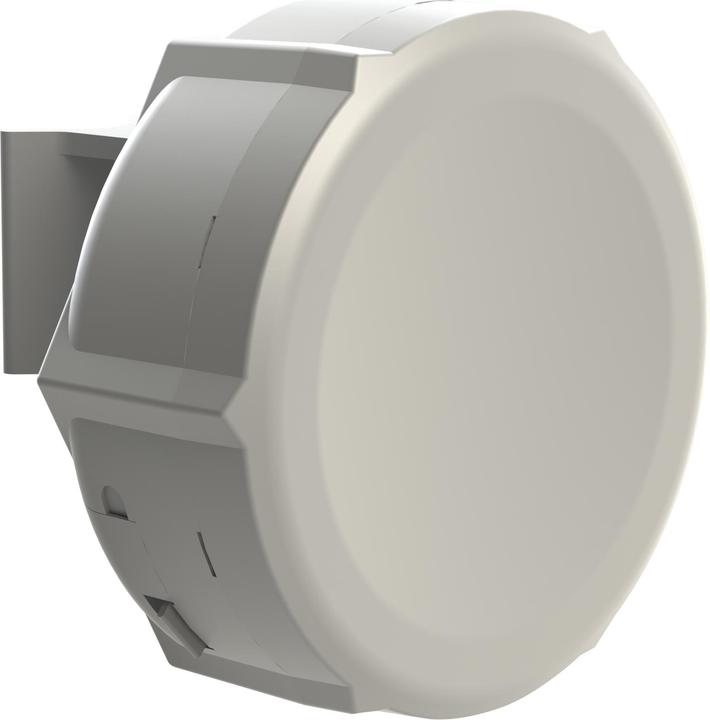

MikroTik RouterBOARD SXTG with Dual

RBSXTG-5HPACD-SA - Dual-Chain 802.11ac, 13 dBi 90° 5 GHz Antenna

The new AC standard is here, offering data rates of up to 866 Mbps over the air, 256-QAM modulation, and 80 MHz channels. 802.11ac provides new possibilities and speeds that were previously unattainable.

The SXT ac is a new member of MikroTik's 802.11ac product line. Currently, two models are available – one with a standard 28-degree antenna and the SA model with a sector antenna featuring a 90-degree beamwidth. The RBSXTG-5HPACD also supports the 802.11a/n mode and is compatible with all older RouterBoard devices, including the Nstream and Nv2 protocols. Both devices are equipped with Gigabit Ethernet.

Features:

• Extended temperature range: -30°C to +80°C
• Up to 540 Mbps throughput
• Low point-to-point latency
• Supports passive PoE and 802.3af/at PoE input (15-60 V)

Attention! This device must be upgraded to RouterOS v6.46 or the latest version to ensure compliance with local regulations!

Technical specifications:

• CPU: QCA9557 720 MHz
• Memory: 128 MB DDR2
• Gigabit: 1x 10/100/1000 Ethernet
• Wireless: Onboard dual-chain 5 GHz 802.11ac QCA9882 WLAN module; 10 kV ESD protection on each RF port
• Supported channels: 20/40/80 MHz
• Supported modes: CPE, Point-to-Point, Point-to-Multipoint
• Extras: Reset button, buzzer, USB 2.0 port, voltage and temperature monitoring
• LEDs: Power, Ethernet, 5x WLAN signal
• Power over Ethernet: 15-60 V DC, passive and 802.3af/at supported (Mode B 4,5 (+) and 7,8 (-); Mode A 1,2 (+) and 3,6 (-)); equipped with a 24 V DC, 0.8 A power supply and passive PoE injector
• Dimensions: 140 x 140 x 56 mm
• Weight without packaging, adapter, and cables: 265 g
• Maximum power consumption: 12 W
• Operating temperature: -30°C to +80°C
• OS: MikroTik RouterOS, Level 4 license

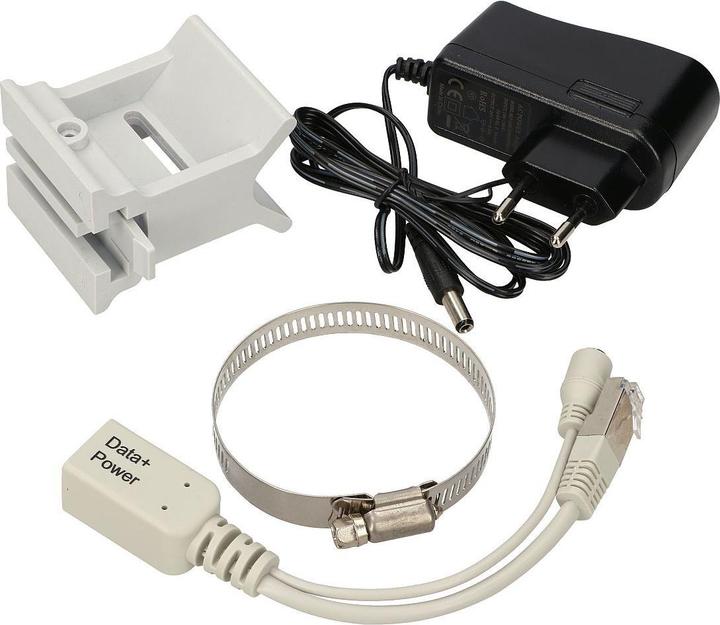

Scope: SXT wireless device with integrated antenna, mast mounting bracket.
