MikroTik RBM33G wired router Black, Green, Grey

MikroTik RBM33G - RouterBoard M33G with 880 MHz CPU, 256 MB RAM

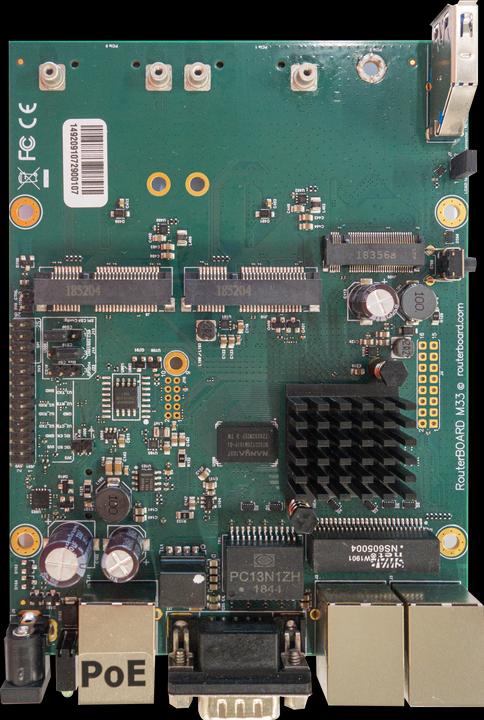

The RBM33G is a fully equipped RouterBOARD device that is perfect for use in a custom enclosure or for building a tailored solution. It uses the same PCB form factor and mounting holes as its predecessors (RB433 and RB953 series).

The RBM33G features a new MediaTek dual-core CPU running at 880 MHz and 256 MB of DDR3 RAM, along with three Gigabit Ethernet ports. It has been specifically designed for setups that require two 3G/LTE modems. For example, you can use the device with:

• Two miniPCIe 3G LTE modems (two SIM slots available)
• Two miniPCIe Wi-Fi cards
• One miniPCIe and one USB 3G/LTE modem, leaving the other miniPCIe slot free for an 802.11 Wi-Fi card (details can be found in the quick start guide)

The integrated USB 2.0/3.0 port can be used for either a 3G/LTE modem or an external hard drive. For storage expansion, there are microSD and a PCIe M.2 slot available.

The RBM33G has a serial RS232 interface for console access. The device can be powered through its Gigabit Ethernet port or via DC power with PoE.

• Product code: RBM33G
• CPU: MediaTek MT7621
• Nominal CPU frequency: 880 MHz
• Number of CPU cores: 2
• RAM size: 256 MB
• Storage: Flash, 16 MB
• 10/100/1000 Ethernet ports: 3
• MiniPCIe slots: 2
• PoE In: Yes
• SSD M.2: Slot
• Serial port: RS232
• USB: 1x USB 3.0 Type A
• Supported input voltage: 10 - 30 V (passive PoE)
• Dimensions: 105 x 150 mm
• Operating temperature: -40°C to +70°C tested
• License level: 4
• Operating system: RouterOS
• Max. power consumption: 19 W.
