MikroTik RBLDFR&R11E-LTE6 - LDF LTE6 kit with 650 MHz CPU (dish not included)

RBLDFR&R11e-LTE6 - LDF LTE6 kit with 650 MHz CPU (dish not included)

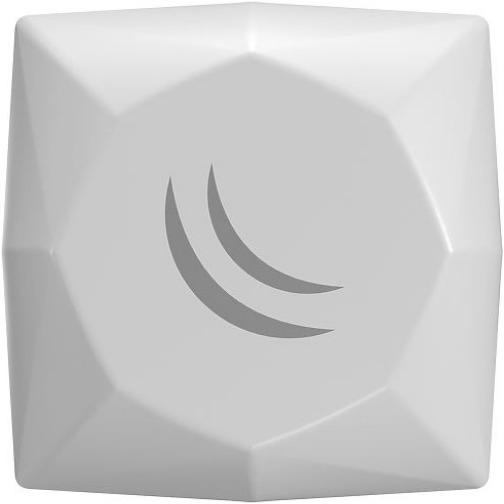

This outdoor wireless system with a built-in antenna can provide a connection even in the most remote locations. Tiny and powerful, it can be used with any satellite TV dish that has an offset mount.

The LDF LTE6 kit is designed for extremely remote locations that are within cellular network coverage. Attach it to any satellite TV dish, and the dish will act as a reflector, greatly amplifying the signal.

Using large enough dishes, it is possible to achieve antenna amplification of 30 dBi or more. This means internet connectivity is possible even in areas where you would usually have no mobile connectivity at all. Stormy weather is not a problem either; with a solid IP68 rating, the LDF LTE6 kit can withstand dust, dirt, and sand, as well as temporary immersion in water.

The LDF LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands simultaneously. This is a significant advantage when there are many LTE users in the area, providing better responsiveness and higher efficiency for weaker signal situations in the countryside. We have observed internet speeds doubling in rural areas after switching to CAT6.

• Product code: RBLDFR&R11e-LTE6
• CPU: QCA9531
• Memory: 64 MB
• Storage size: 16 MB Flash
• Number of 100 M Ethernet ports: 1
• MiniPCIe slots: 1
• LTE category: 6 (300 Mbit/s downlink, 50 Mbit/s uplink)
• 3G category: R7 (21 Mbps downlink, 5.76 Mbps uplink); R8 (42.2 Mbps downlink, 5.76 Mbps uplink)
• 2G category: Class 12
• Power options: Passive PoE input 10-28 V
• Max. power consumption: 6 W
• Internal antenna gain: 8 dBi
• Antenna beam width: 66°
• Operating temperature: -30°C to +60°C
• Dimensions: 94 x 94 x 150 mm
• Certification: CE, FCC, IC
• Ingress protection: IP68.
