MikroTik RBDYNADISHG-5HACD - DynaDish 5

MikroTik RBDynaDishG-5HacD - DynaDish 5

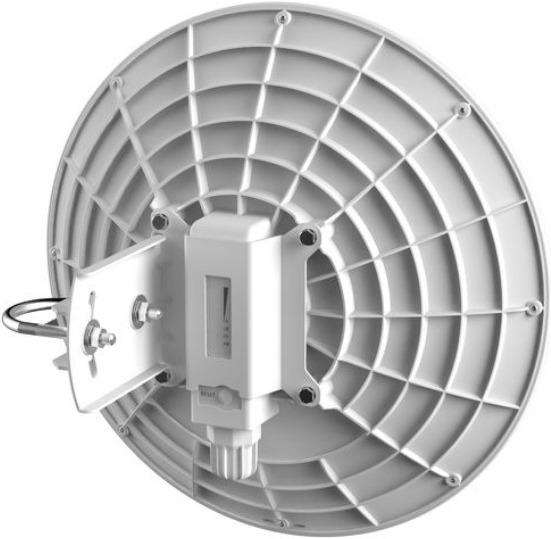

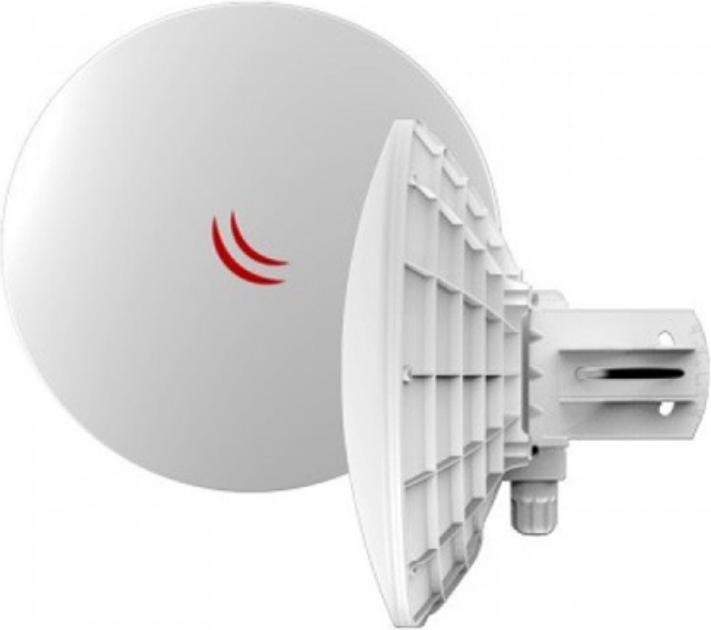

The DynaDish 5 is a new 802.11ac outdoor device with an integrated antenna. With its compact design, it is an easy-to-use, fully integrated product that provides everything needed to establish reliable point-to-point connections in no time. The DynaDish 5 is powered by a new 720 MHz CPU from Qualcomm.

New 802.11ac outdoor device:

• Ideal for long-range point-to-point connections
• 5 GHz dual-chain board integrated into a 23 dBi parabolic antenna with an 8-degree beamwidth
• 720 MHz CPU, 300 MHz DDR2
• 1x Gigabit Ethernet port

The antenna is a parabolic antenna with an 8-degree beamwidth and 23 dBi gain, and its included mount allows for precise alignment, making it ideal for long-range point-to-point connections.

Attention! This device must be upgraded to RouterOS v6.46 or the latest version to ensure compliance with local authority regulations!

Specifications

• Product Code: RBDynaDishG-5HacD
• CPU Nominal Frequency: 720 MHz
• Number of CPU Cores: 1
• RAM Size: 128 MB
• Flash: 16 MB SPI Flash
• 10/100/1000 Ethernet Ports: 1
• WLAN: Integrated 5 GHz 802.11ac, dual-chain
• Antenna Gain: 23 dBi
• Beamwidth: 8°
• WLAN Chip Model: QCA9892 (supports 5/10 MHz channels in 802.11an)
• PoE In: Yes
• Input Voltage: 11 - 60 V, 802.3af/at and passive PoE
• Voltage Monitoring: Yes
• PCB Temperature Monitoring: Yes
• CPU Temperature Monitoring: No
• Dimensions: 404 mm, height 175 mm (without mount)
• License Level: 3
• Operating System: RouterOS
• CPU: QCA9557-AT4A-R
• Max. Power Consumption: 16 W.
