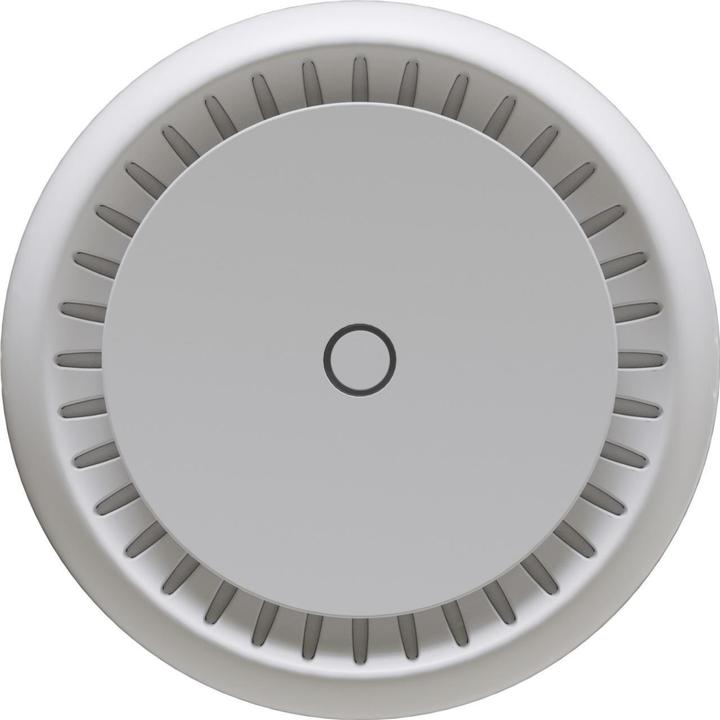

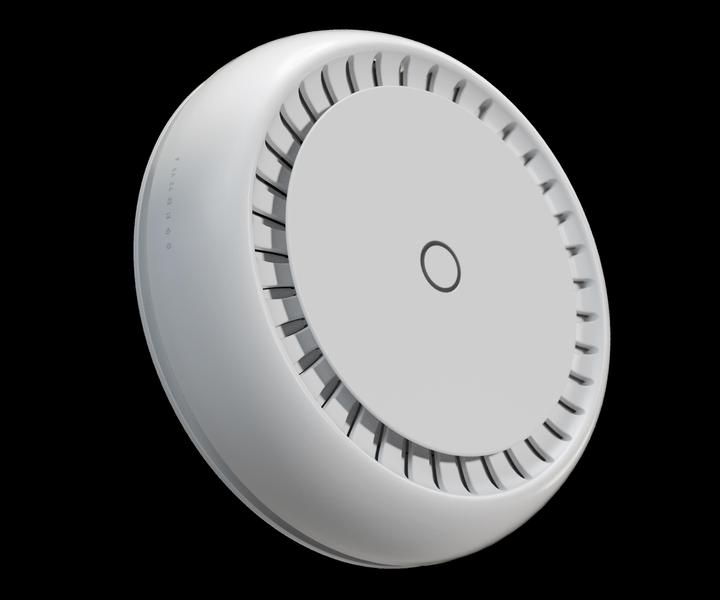

MikroTik RBCAPGI-5ACD2ND-XL - cAP XL ac, 2.4/5 GHz ceiling AP

RBCAPGI-5ACD2ND-XL - CAP XL AC, 2.4/5 GHz Ceiling AP

Do you need a good-looking access point that won't get in your way? Or are you managing a network in a crowded location and don’t want everyone to have manual access to the device? Either way – the ceiling is the answer! The CAP XL AC itself is quite slim – its low profile draws less attention than a smoke detector. Your customers, guests, or colleagues won’t even notice it. But they will definitely notice the lightning-fast Wi-Fi connection throughout the building.

The new design features a larger high-gain antenna, increased sensitivity, and an integrated reflector. These improvements allow for a coverage area increase of up to 100% compared to previous CAP models!

The dual-band, dual-chain 2.4 and 5 GHz radio provides strong 360-degree coverage, so you don’t have to worry as much about the placement of the device. Mounting it on the ceiling eliminates many issues with signal absorption, such as signals being blocked by large televisions, metal walls in open offices, etc.

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the option to expand your network with cables, even when PoE power is needed: The CAP XL AC supports 802.3af/at PoE input on the first port and passive PoE output (up to 57 V) on the second port.

Included Parts:

• Power supply 24 V/1.2 A
• Ceiling mount
• Gigabit PoE injector
• Mounting kit

Specifications:

• Product code: RBCAPGI-5ACD2ND-XL
• CPU: Quad-Core IPQ-4018 710 MHz
• RAM size: 128 MB
• RAM type: DDR3L
• Storage: 16 MB, Flash
• Number of 1G Ethernet ports: 2
• WiFi: 2.4 GHz; 5 GHz
• Supported protocol: 802.11b/g/n; 802.11a/n/ac
• Antenna gain: 6 dBi; 5.5 dBi
• Number of chains: 2
• Operating system: RouterOS (license level...).
