MikroTik mANT 30dBi 5Ghz Parabolic Dish

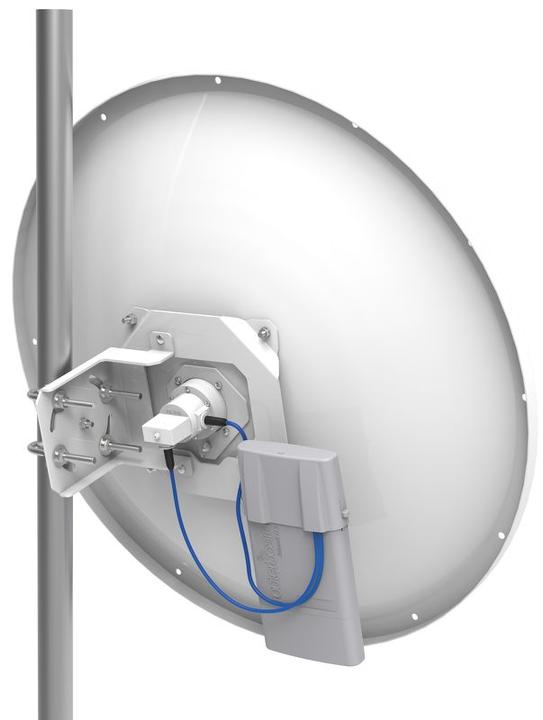

MikroTik mANT30 MTAD-5G-30D3 dish antenna with standard pole mount

The mANT30 is a professional class 5 GHz 30 dBi dish antenna, built to the highest industry standards. It is designed to seamlessly accommodate the Basebox series products but can be used for any pole-mounted wireless device due to the adequate length of the included FlexGuide cable.

Two antennas are available: one with a standard-type mount (MTAD-5G-30D3) and another with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

Electrical Specifications

• Frequency range: 4.7 - 5.875 GHz
• Gain: 30 dBi typically
• Dual polarization: Vertical and horizontal
• 3 dB beamwidth: +/-2.5 deg
• Compliant with: EN 302 326 DN1, DN2, DN3, DN5
• VSWR: ≤ 1.4 typ., ≤ 1.8 max.
• Port-to-port isolation: >40 dB min.
• Front-to-back ratio: >30 dB
• Cross polarization: >40 dB
• Power rating: 100 Watts
• Impedance: 50 Ohms
• Elevation adjustment range: +/- 20 deg (MTAD-5G-30D3)

Physical/Environmental Specifications

• Diameter x depth: 70 x 45 cm (27.5 x 17.8 in)
• Weight net, without Basebox and radome: 4.8 kg (10.7 lbs)
• Standard version: Reflector aluminum
• Outdoor rating: ETSI EN 300 019-2-4
• Wind survivability: 201 kph (125 mph)
• Wind load: (125 mph) 181.4 kg (400 lbs), 79 kg (174 lbs) with radome
• Operating temperature: -50°C to 80°C (-49°F to 158°F)
• Pole mount diameter range: (MTAD-5G-30D3): 3 to 7 cm (1.2 to 2.75 in)
• Connectors: (2) RP-SMA female (outside thread)
• Packaged size: 73 x 73 x 20 cm (29 x 29 x 8 in)
• Packaged weight: (MTAD-5G-30D3): 7.5 kg (16.5 lbs)
• Compatible with: Can directly mount Basebox and other future RouterBOARD devices or accept any pole-mounted device
• Package includes: FlexGuide RP-SMA RF cables (RP-SMA-male to RP-SMA-male) x2; bracket for mounting Basebox series radio; self-bonding tape for insulating the RF cables x2 slices; standard alignment mechanisms.
