MikroTik LtAP with RouterOS L4 License

MikroTik LtAP LTE Kit with Dual Core 880 MHz CPU, 256 MB RAM, no LTE modem.

The LtAP LTE Kit is a compact, weatherproof wireless access point with an integrated mobile modem that supports 4G (LTE) connectivity. Connect wirelessly to the integrated 2.4 GHz 802.11b/g/n high-performance network of the LtAP and access the LTE network via your phone or another wireless device. The LtAP LTE Kit also features a Gigabit Ethernet LAN port for wired devices. The serial RS232 interface provides console access for debugging.

The device has two miniPCIe slots, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5 GHz interface to use 2.4 GHz/5 GHz AP + LTE connectivity simultaneously. The device is powered by a Dual-Core 880 MHz CPU and 128 MB RAM for high loads.

Three models are available:

• LtAP-LTE Kit (RBLtAP-2HnD and R11e-LTE) with R11e-LTE modem for international bands 1, 2, 3, 7, 8, 20, 38, and 40
• LtAP 4G Kit (RBLtAP-2HnD and R11e-4G) with R11e 4G modem for international/USA bands 3, 7, 20, 31, 41n, 42, and 43
• LtAP (RBLtAP-2HnD) without LTE card

Included parts:

• 24 V, 1.2 A power supply

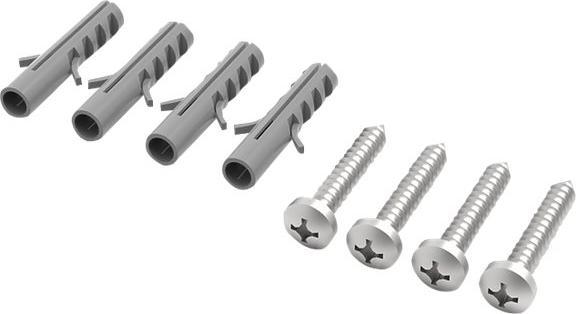

• Screw sets

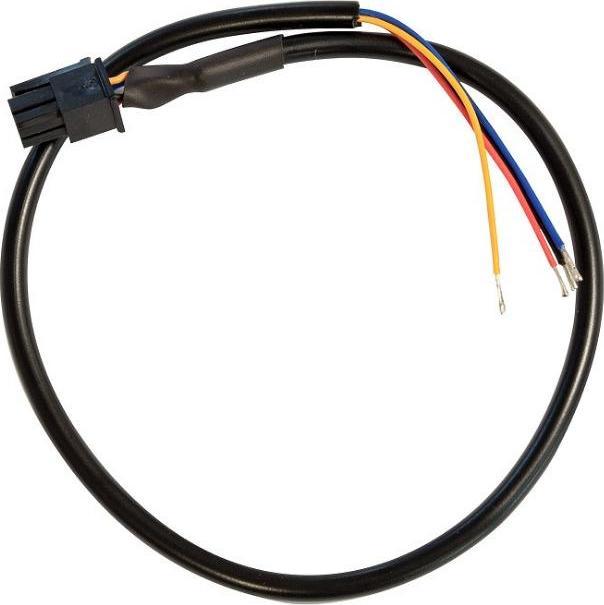

• Vehicle cable

Product code: RBLtAP-2HnD
CPU: Dual-Core MediaTek MT7621 880 MHz
RAM size: 128 MB
Storage: 16 MB Flash
10/100/1000 Ethernet ports: 1
Wi-Fi: 2.4 GHz 802.11b/g/n Dual-Chain
Wi-Fi regulations: The specific frequency range is limited by country-specific regulations
Max antenna gain for wireless: 2.5 dBi
Max antenna gain for LTE: 4 dBi (with u.FL connector)
Antenna beamwidth: 360°
LTE category: -
3G category: -
2G category: -
Supported input voltage: DC socket or vehicle plug 12 - 30 V
PoE in: Passive PoE 12 - 30 V
Dimensions: 170 x 162 x 40 mm
Operating temperature: -40°C to...
