MikroTik CSS326-24G-2S+RM
24 Ports6 items in stock at supplier
Product details

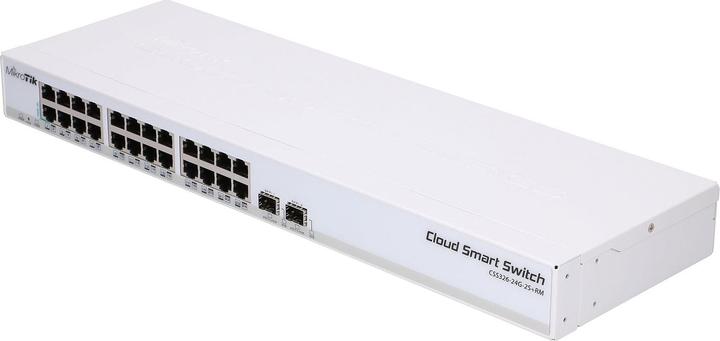

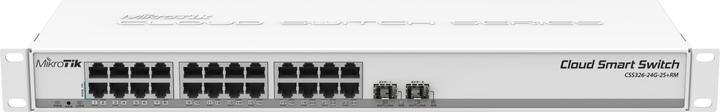

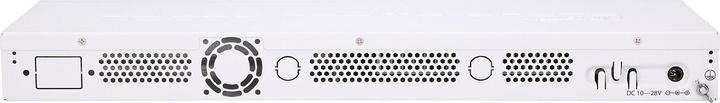

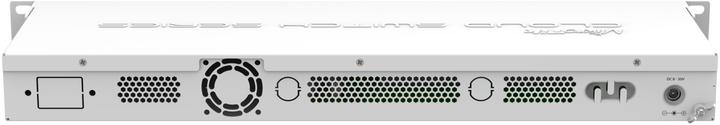

MikroTik Cloud Smart Switch CSS326-24G-2S+RM
The SwOS-powered 24-port Gigabit Ethernet switch with two SFP+ ports offers cable-speed connectivity and several new switching features.
The Cloud Smart Switch CSS326-24G-2S+RM is equipped with a Marvell DX switch chip. The device runs on an operating system specifically designed for MikroTik switch products - SwOS. SwOS can be configured through your web browser and provides all the basic features for a managed switch and more: It allows management of port-to-port forwarding, application of MAC filters, configuration of VLANs, traffic mirroring, application of bandwidth limitations, and customization of some MAC and IP header fields. The SFP cage supports both 1.25 Gbit SFP and 10 Gbit SFP+ modules.
Features:
- Non-blocking Layer 2 switching capacity
- 16K host table
- IEEE 802.1Q VLAN
- Supports up to 4K simultaneous VLANs
- Port isolation
- Port security
- Broadcast storm control
- Port mirroring of incoming/outgoing traffic
- Rapid Spanning Tree Protocol
- Access control list
- MikroTik Neighbor Discovery
- SNMP v1
- Web-based GUI
- Switch chip model: 98DX3216A1
- Storage type: Flash
- Storage size: 2 MB
- 10/100/1000 Ethernet ports: 24
- SFP+ cages: 2
- Operating system: SwOS

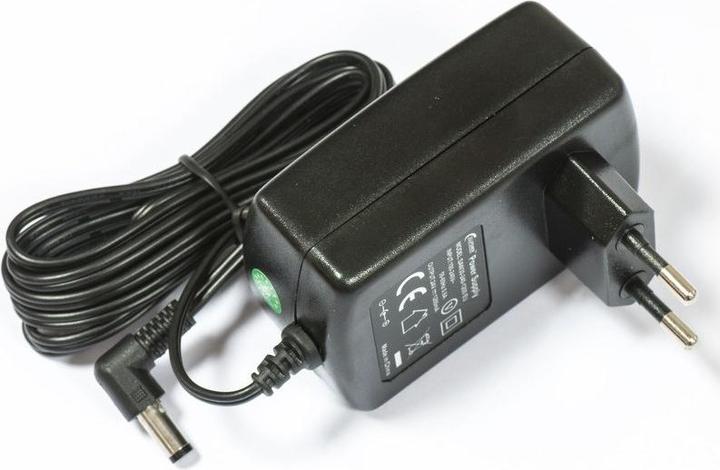

- Supported input voltage: 12 - 30 V (power adapter or passive PoE)
- Dimensions: 440 x 144 x 44 mm
- Operating temperature: -40°C to +70°C tested
- Max. power consumption: 19 W
- Serial port: RJ45.
Max. port speed | 1000 Mbit/s |
Network connections | RJ45 (24x), SFP+ (2x) |
Switchtype | Rack Switch |
Management | Smart managed |
Switch functions | Quality of Service (QoS) |
Item number | 21486530 |
Manufacturer | MikroTik |
Category | Network switches |
Manufacturer no. | MT CSS326-24G-2S+RM |
Release date | 17.1.2017 |
Sales rank in Category Network switches | 321 of 5303 |
External links | |
May include power adapter | No |
Colour | White |
Exact colour description | White |
Switchtype | Rack Switch |
Rack Unit | 1U |
Number of ports | 24 Ports |
Management | Smart managed |
Switch functions | Quality of Service (QoS) |
switching layer | Layer 2 |
Switching capacity | 86 Gbit/s |
Max. Number of VLANs | 4000 x |
MAC adress table size | 16000 |
Manufacturer Type | CSS326-24G-2S+RM |
Network connections | RJ45 (24x), SFP+ (2x) |
Max. port speed | 1000 Mbit/s |
Max. port speed RJ45 | 1000 Mbit/s |
Max. Port speed | 1000 Mbps / 1 Gbps |
Application range | Network |
Network operation | Power supply unit redundant |
Power consumption | 19 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Mounting bracket |
Length | 14.50 cm |
Width | 44.40 cm |
Height | 4.40 cm |
Weight | 1680 g |
Length | 55.60 cm |
Width | 19.50 cm |
Height | 7.50 cm |
Weight | 1.68 kg |
