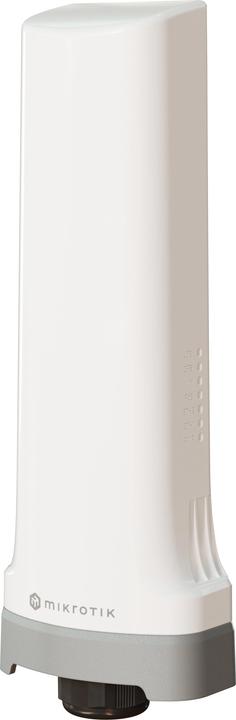

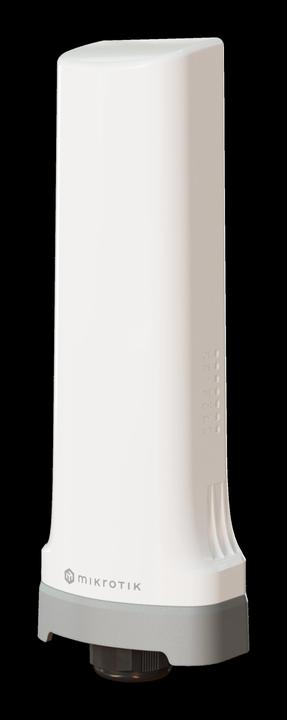

MikroTik CME22-2N-BG77 -, CME Gateway - IoT Gateway with 650MHz CPU, 64MB RAM, 2 x

Are you tired of the limitations of wired sensors? Wouldn't it be nice if older devices like power meters could send their data over the mobile network, just like our phones do? With the CME Gateway, you can achieve exactly that – and more!

It features two Ethernet ports, an integrated CPU, some RAM, and the crown jewel: a powerful built-in CAT-M narrowband LTE modem. This provides an extremely efficient, cost-effective mobile internet connection with low bandwidth. Sure, you can't stream YouTube videos with narrowband, but it serves a different purpose: it offers better network coverage and transmits data over the cheapest data rates in the world.

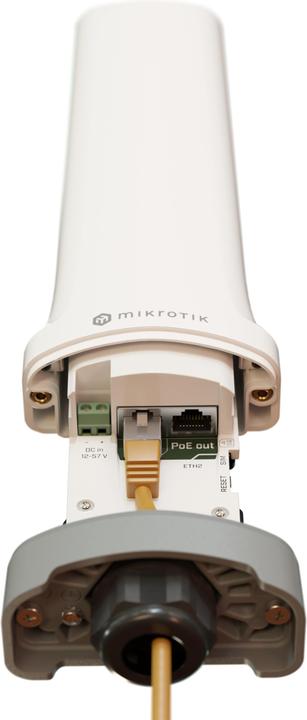

Thanks to its IP66 waterproof rating, this robust device can withstand a variety of harsh environments and setups: humid attics, rainy forests, agricultural equipment, and more. It has a PoE input, a PoE output, and a 2-pin DC connection for convenient power supply. And to make management even easier, we’ve added simple single-chain 2.4 GHz wireless, allowing you to use the MikroTik smartphone app to configure everything.

Another fun bonus: the board supports GPS. So if you're familiar with RouterOS scripts, you can also collect weekly, daily, or even hourly location data!

Specifications

• Product code: CME22-2n-BG77
• Architecture: MIPSBE
• CPU: QCA9531
• Number of CPU cores: 1
• CPU nominal frequency: 650 MHz
• Switch chip model: QCA9531
• RouterOS license: 4
• Operating system: RouterOS v7
• RAM size: 64 MB
• Storage size: 16 MB
• Storage type: FLASH MTBF
• Approximately 100,000 hours at 25°C
• Tested ambient temperature: -40°C to 70°C

Power Supply

• Number of DC inputs: 2 (2-pin connector, PoE-IN), 2-pin terminal input...
