MikroTik 5GHz 90 degrees 14dBi Dual

MikroTik RouterBOARD SXTG-5HPnD-SAr2

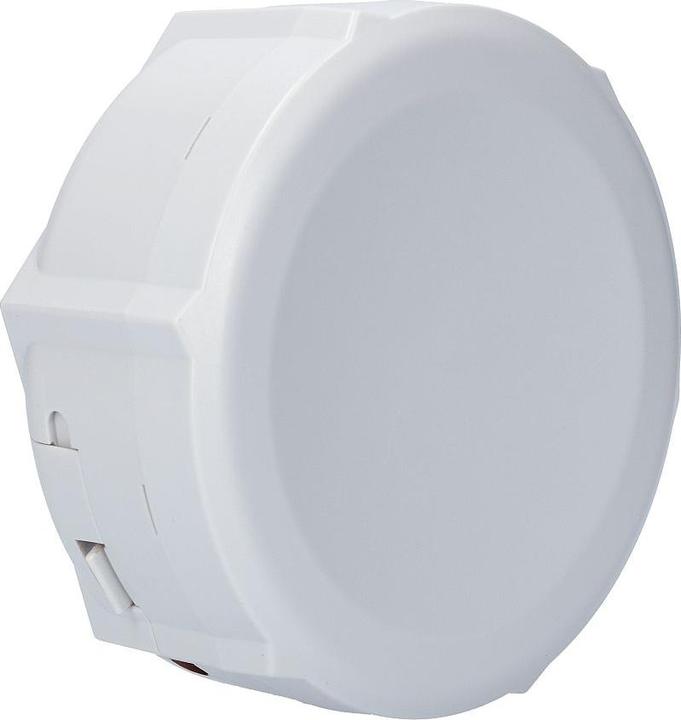

The SXTG-5HPnD-SAr2 is a cost-effective, high-performance wireless 5 GHz outdoor access point. It features a 90-degree antenna that provides wider coverage than previous SXT units.

The device comes in a ready-to-mount housing with an integrated 14 dBi antenna, so you have everything you need for installation. This takes only a few minutes.

Technical Specifications:

• CPU: AR9344 600 MHz
• Memory: 64 MB DDR SDRAM onboard
• Ethernet: 10/100/1000 (Gigabit) Ethernet port
• Wireless: Onboard dual-chain 5 GHz 802.11a/n; 10 kV ESD protection on RF port

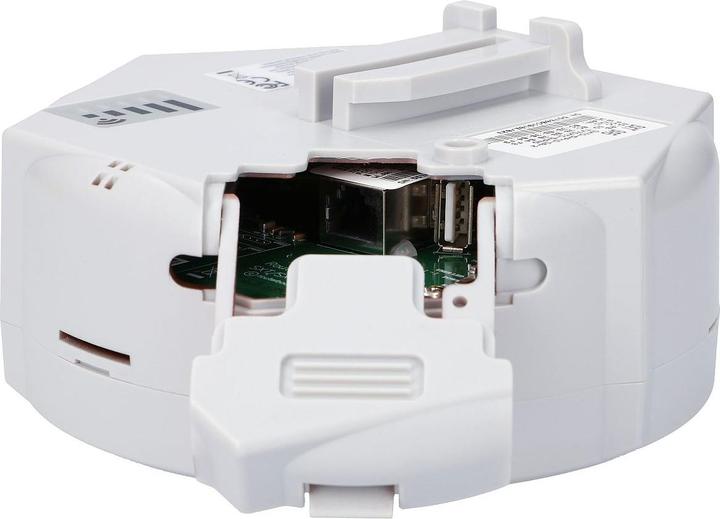

• Extras: Reset button, buzzer, USB 2.0 port, power and temperature monitoring
• LEDs: Power, Ethernet, 5x Wi-Fi signal
• Power Supply: Power over Ethernet: 8-30 V DC with 24 V DC/0.8 A power adapter and passive PoE injector
• Dimensions: 140 x 140 x 56 mm
• Weight without packaging, adapter, and cables: 265 g
• Power Consumption: Up to 7 W
• Operating Temperature: -30°C to +80°C
• License: Level 4 license (CPE, PtP or AP as sector)

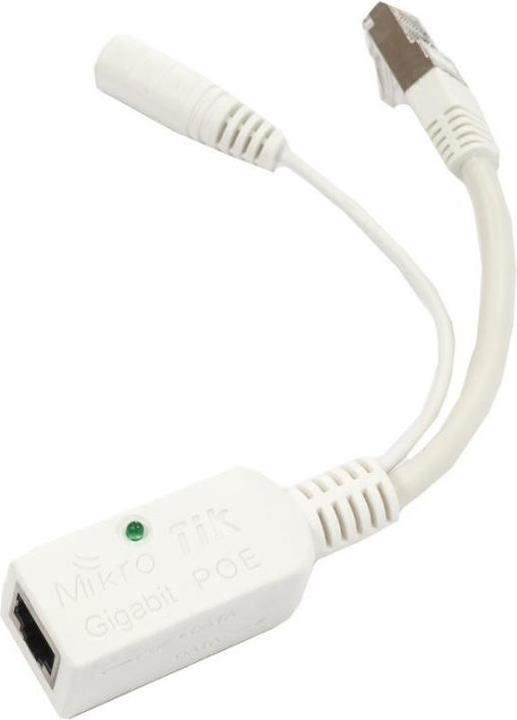

• Package Contents: SXT wireless device with integrated antenna, mast mounting bracket, mounting ring, PoE injector, power adapter, quick start guide
• Certifications: FCC, CE, ROHS
• TX/RX at MCS0: 30 dBm / -95 dBm
• TX/RX at MCS7: 26 dBm / -73 dBm
• TX/RX at 6 Mbit: 30 dBm / -96 dBm
• TX/RX at 54 Mbit: 27 dBm / -80 dBm
• Antenna: 90 degrees, -35 dB port-to-port isolation, 14 dBi gain.
