Metz Connect NETCOM 1509MAJO002C-F Fiber optic connector LC

Metz Connect LWL-St.LCPCOM3/OM4 A+C 1509MAJO002C-F (VE20)

Manufacturer: Metz Connect
Description: LWL-St.LCPCOM3/OM4 A+C 0.25+0.9
Type: 1509MAJO002C-F (VE20)
Design: Plug
Suitable for Fiber Type: Multimode
Connector Type: LC
APC Design: No
Connection Type: Terminals
Material of Ferrule: Ceramic
Color: Turquoise
Fiber Class: OM4

Additional Details:
Field-installable fiber optic connector for multimode technology, no polishing or gluing required during on-site assembly. Simple, easy-to-learn, quick, and cost-effective installation. Available with LC and SC connector types for multimode (suitable for OM3 and OM4). OM2 variants available upon request.

Connector kits for fiber optic fibers with Ø 0.25 and Ø 0.9 mm, connector kits for fiber optic cables with Ø 2.0 and Ø 3.0 mm. The connector can be assembled up to three times. Each connector has a serial number for traceability at any time.

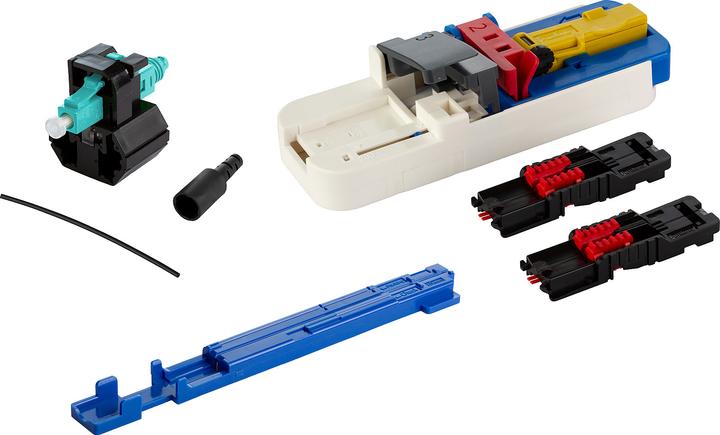

Depending on the variant, included in the delivery:

• A maintenance-free cleaver that can be used up to 200 times.
• A cable assembly kit for easy cable installation.
• A fiber guide for easy insertion of the fiber into the connector.

Applications:
Repairs in the field and in hard-to-reach or spatially restricted areas.

Variants for fibers: 10 pieces without tools / 20 or 100 pieces with cleaver and fiber guide.
Variants for cables: 10 pieces without tools / 20 or 100 pieces with cleaver, cable assembly kit, and fiber guide.

EAN: 4251394629629.
