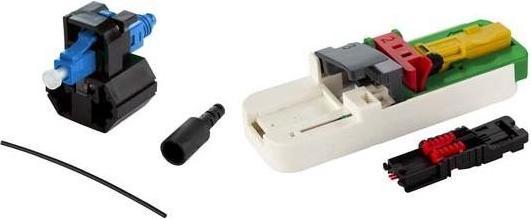

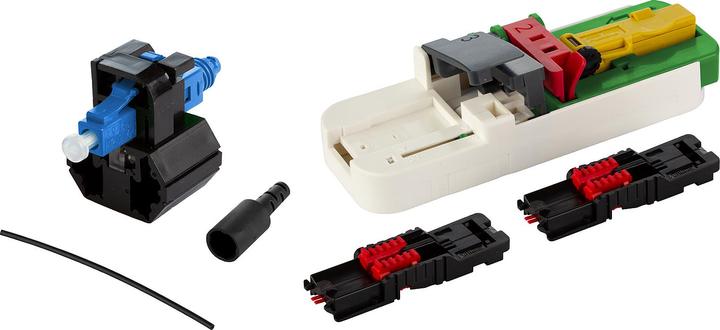

Metz Connect BTR NETCOM 1509QAJO002C-E Fiber optic connector LC

Metz Connect LWL-St.LCUPCOS2 A+C 1509QAJO002C-E (VE20)

Manufacturer: Metz Connect
Description: LWL-St.LCUPCOS2 A+C 0.25+0.9
Type: 1509QAJO002C-E (VE20)
Design: Plug
Suitable for Fiber Type: Singlemode
Connector Type: LC
APC Design: No
Connection Type: Terminal
Material of Ferrule: Ceramic
Color: Blue
Fiber Class: OS2

Metz Connect LWL-St.LCUPCOS2 A+C 1509QAJO002C-E (VE20): Additional Details
Field-installable fiber optic connector for singlemode technology with hybrid technology: refractive index gel plus opto-elast guarantee very good and consistent optical values. No polishing, no gluing during onsite assembly, easy, quick to learn, fast, and cost-effective installation in less than two minutes. Available with LC and SC connector types for singlemode (UPC and APC polish). Connector kits for fiber with Ø 0.25 and Ø 0.9 mm, connector kits for fiber optic cables with Ø 2.0 and Ø 3.0 mm. The connector can be assembled up to three times. Each connector has a serial number for traceability at any time. Depending on the variant, included in the delivery: a maintenance-free cleaver that provides an angled cut, achieving high return loss values. The cleaver can be used up to 200 times, a cable assembly kit for easy cable installation, and a fiber guide for easy insertion of the fiber into the connector.

Applications: for FTTH and FITH connections, field repairs, in hard-to-reach or spatially restricted areas, and for direct mounting on components. Variants for fibers: 10 pieces without tools / 20 or 100 pieces with cleaver and fiber guide, variants for cables: 10 pieces without tools / 20 or 100 pieces with cleaver, cable assembly kit, and fiber guide.
EAN: 4251394625331.
