Name: KNX ARGUS 180/2.20 m UP, anthracite, 632714
Brand: Merten
SKU: 23770764
Price: 110 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Merten

KNX Argus 180/2, 2.20 m flush-mounted sensor for System M. Motion detector for indoor use with anti-creep protection. When motion is detected, a data telegram defined by the programming is sent. With integrated bus coupler. Designed for wall mounting in a 60 mm installation box, optimal installation height of 2.2 m. KNX software functions: Five motion blocks, with up to four functions triggered per block. Telegrams: 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, security pause, deactivation function. Sensitivity, brightness, and stair light duration can be adjusted via ETS or the potentiometer. Two motion sensors: Sensitivity and range can be set separately for each sensor. Self-adjusting stair light duration. Detection angle: 180°. Range: 8 m to the right/left, 12 m forward (at a mounting height of 2.20 m). Mounting height: 2.2 m or 1.1 m at half range. Number of levels: 6. Number of zones: 46. Number of motion sensors: 2, sector-oriented, adjustable. Sensitivity: continuously adjustable (ETS or potentiometer). Light sensor: continuously adjustable from approximately 10 to 2000 Lux (ETS or potentiometer). Time: adjustable in increments from 1 s to 8 min (potentiometer) or adjustable from 1 s to 255 hours (ETS). Contents: With bus connection terminal and mounting plate. With cover segments to limit the detection area. Material: Thermoplastic, elegant matte finish. Color: anthracite.

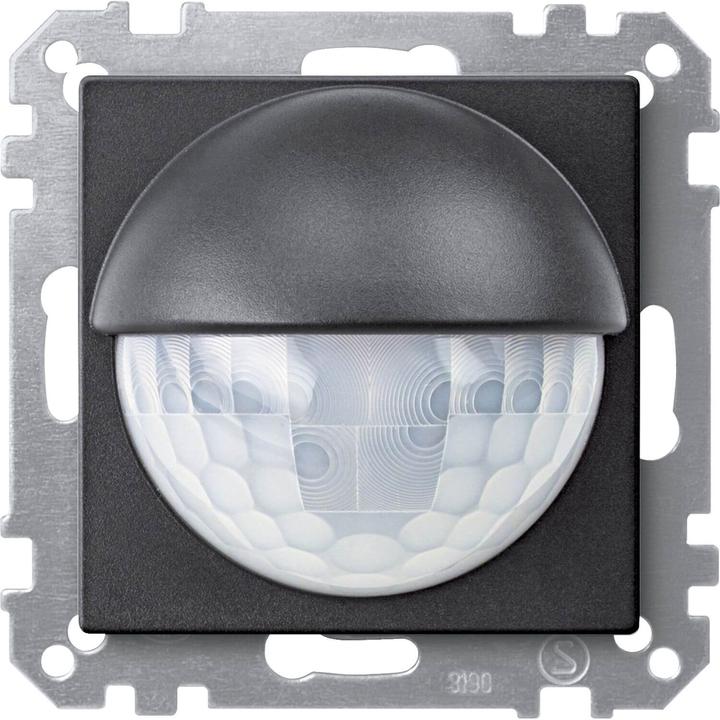

Actual product image Merten KNX ARGUS 180/2.20 m UP, anthracite, 632714 (12 m)
