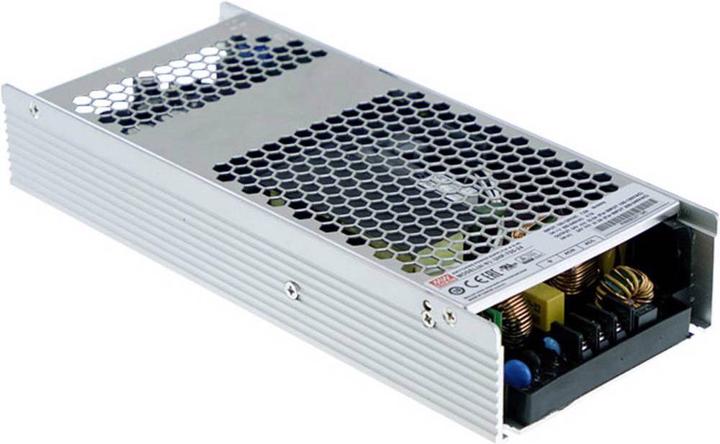

MeanWell UHP-750-24 AC/DC power supply module

With the newly added power supplies from the UHP-750 series, Mean Well expands the output power of the UHP family to 1000 W. The power supplies in the UHP series feature a slim U-bracket design with a low profile of 31 mm. The series boasts a high efficiency of up to 96% with an operating temperature range of -30 to +70 °C under simple air convection. Mean Well power supplies provide a power reserve of 150% (100 ms) of the rated current for peak loads and can be used at altitudes of up to 5000 m. The UHP-350R version additionally includes a DC-OK signal and a redundancy function. The power supplies in the UHP series comply with international standards and are suitable for a wide range of industrial applications.
