Product details
Output voltage: 5 V dc
Output current: 8 A
Rated power: 40 W
Input voltage: 127 to 370 V dc, 90 to 264 V ac
Mounting type: Chassis mount
Enclosure type: Open Frame
Length: 101.6 mm
Width: 50.8 mm
Depth: 29 mm
Ripple and noise voltage: 80 mV ss
Load regulation: ±1 %
Line regulation: ±0.5 %
Min. temperature: -30 °C
Max. temperature: +70 °C
Operating time: 652.3 kh

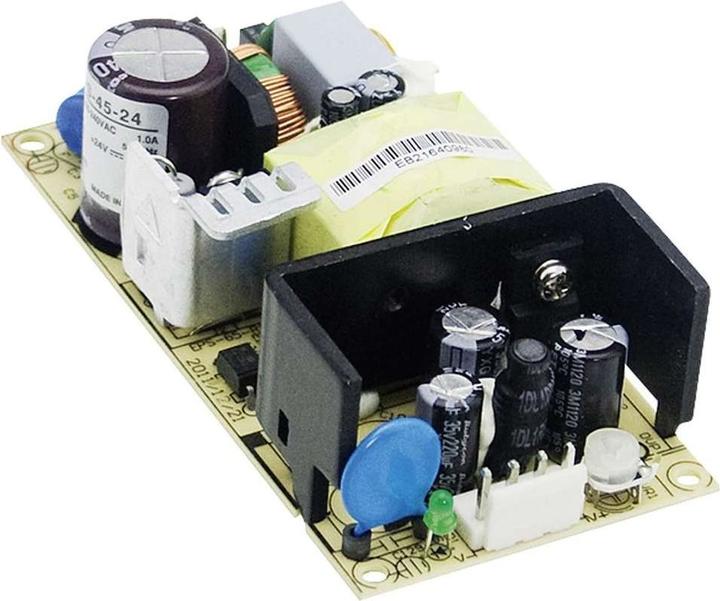

Approval for UL 60950-1, TÜV EN 60950-1, cULus, CB, TÜV. A cover set is available for these power supplies. MTBF according to MIL-HDBK-217F (25 °C). Power reduction above 50 °C. AC/DC switching power supply Mean Well Series EPS-45 with open frame design, 45 W. AC/DC miniature switching power supplies of the EPS-45 series with open frame design for 45 W with a flat construction of 24 mm, compact dimensions, and a PCB structure for direct installation into the system chassis. The AC/DC power supplies of the EPS-45 series with open frame design for 45 W feature a universal input for 90 to 264 Vac, a high efficiency of up to 90 %, enabling convection cooling from -30 to +70 °C, and a low power consumption at no load of less than 0.3 W. Typical applications for these AC/DC switching power supplies of the EPS-45 series with open frame design include factory automation, electrical or mechanical devices, and other applications where low power consumption at no load is required. Universal input: 90-264 Vac. Low power consumption at no load of less than 0.3 W. High efficiency of up to 90 %. LED operating indicator. Flat design of 28 mm and compact dimensions of 4" x 2". Free air convection cooling. Short circuit, overload, and overvoltage protection. EMC protection according to EN 55022 (CISPR22) Class B. Harmonic compatibility according to EN 61000-3-2, -3.
