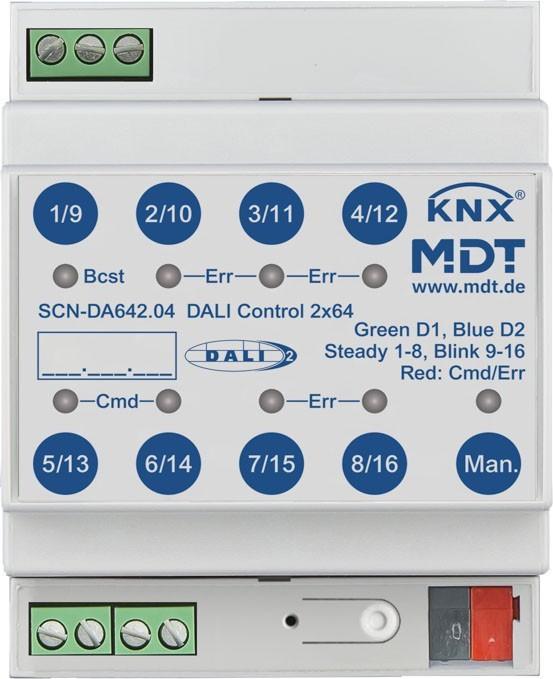

MDT SCN-DA642.04 DALI Control 2x64 Gateway, 4TE, REG (SCN-DA642.04)

MDT technologies DALI Control 2x64 Gateway SCN-DA642.04

Manufacturer: MDT technologies
Designation: DALI Control 2x64 Gateway 4TE, REG
Type: SCN-DA642.04
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Design: Interface for Lighting System/DALI
Mounting Type: REG
Width in Division Units: 4
Number of Channels: 2
Max. Number of Devices per Channel: 64
Disassembly Protection: no
With LED Display: yes
Updatable: yes
Operating Voltage: 110..240 V
Voltage Type: AC/DC
Power Consumption: 5 W
Protocol: other
Provider Dependent: no
Web Server: no
Wireless Interface: no
IR Interface: no
Protection Class (IP): IP20

The DALI gateway is DALI-2 certified. Color adjustment via HSV control. 2 DALI outputs for a maximum of 2 x 64 electronic ballasts (EVGs). Individual control of up to 64 EVGs / 16 DALI groups per output. Supports DALI and DALI-2 standards, as well as DALI DT6/DT8. Innovative HSV color control, RGB, RGBW, and XY color according to DALI DT8 standard. Tunable White color temperature control. Integrated color control module for time-dependent control of light color. Active status query of individual EVGs during external override. Supports EVGs of device type 51 to provide energy or power values directly. Operating modes: Normal, Permanent, Night, Staircase, Panic, and Manual Control. 16 scenes with individual dimming times. Energy-saving function to switch off the EVGs in the DALI groups (via an additional KNX switching actuator). Detection of faulty lamps and EVGs, quick exchange of EVGs. Free DCA app for commissioning and configuration of the DALI bus system, commissioning from ETS 5. EAN: 4251916130725.
