MDT Glass presence detector

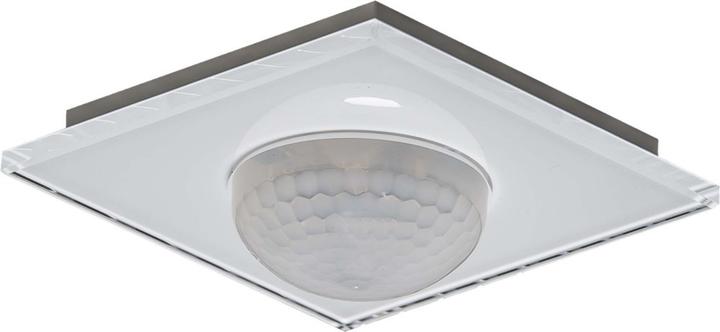

MDT technologies glass presence detector 360° SCN-G360D3.03

Manufacturer: MDT technologies
Name: Glass presence detector 360°
Type: SCN-G360D3.03
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Design: Presence detector
Mounting type: Flush-mounted
Material: Glass
Material grade: Other
Surface protection: Other
Finish: Glossy
Color: White
Transparent: No
With bus coupling: Yes
Extension unit input: No
Operating mode switch: Yes
Animal track: No
Staircase monitoring: Yes
Response brightness adjustable: Yes
Teach function for response brightness: No
Self-learning switch-off delay: No
Optimal mounting height: 2.5 m
Max. range to one side: 5.5 m
Detection field diameter on floor: 11 m
Detection angle horizontal: 360°
Number of channels: 3
Min. duty cycle: 1 s
Max. duty cycle: 2 min
Duty cycle: 240 min
Min. depth of device box: 35 mm

MDT technologies glass presence detector 360° SCN-G360D3.03: more details
Glass presence detector 360° with 3 sensors and temperature sensor, white. Designed for ceiling mounting in the switch box. Extensive application. Glass front in white, integrated temperature sensor. 3 sensors with lens for presence detection. Adjustable standby and presence sensitivity for day, night, and alarm. Range 11 m diameter, presence 5 m diameter. 3 light channels, sensors can be evaluated individually. 1 HVAC and 1 alarm/signaling channel. Short-time presence to reduce the overrun time. Locking and forced function with fallback time. Extensive day/night function with a second switching object. Integrated white LED night light. Orientation light function for leaving the room. Avoid false alarms for the alarm channel by reduced sensitivity and adjustable observation window. EAN: 4251916111373.
