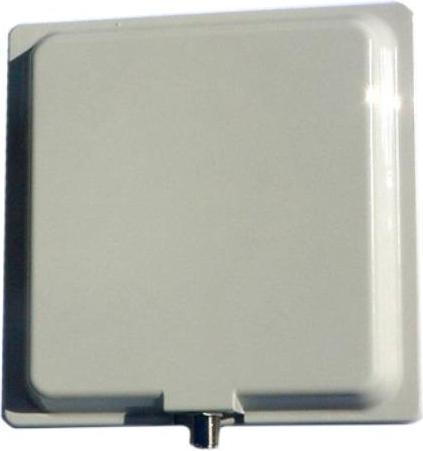

Mars MA-CLTE-14B - LTE Multiband Panel Antenna wall/pole mountable for outdoors

MARS MA-CLTE-14B - LTE multiband panel antenna, wall/pole mountable for outdoors.

The up-to-date multiband panel antenna covers all the bands for LTE 700 MHz, cellular bands, as well as ISM, WLAN, GSM 1800, UMTS, and Bluetooth. The antenna is aesthetic, small, and has an unobtrusive profile that blends easily with any environment. It can be easily used for either indoor or outdoor applications and features different mounting options.

Electrical specifications:

• Standard: LTE; 700 SMR, AMPC, CDMA, TDMA, GSM 900; GSM 1800, UMTS; Bluetooth, ISM, WLAN
• Frequency range: 698-806 MHz; 806-960 MHz; 1710-2170 MHz; 2.2-2.7 GHz
• Gain, typ.: 5 +/-1 dBi; 6 +/-1 dBi; 6.5 +/-1 dBi; 5 +/-1 dBi
• VSWR, max.: 2:1; 2:1; 1.7:1; 1.7:1
• 3 dB beam-width, H-plane, typ.: 130°; 140°; 80°; 55°
• 3 dB beam-width, E-plane, typ.: 70°; 60°; 45°; 30°
• Polarization: Linear, vertical
• Input power, max.: 10 Watt
• Input impedance: 50 Ohm

Mechanical specifications:

• Dimensions (H x W x D): 231 x 215 x 37.5 mm (9.1" x 8.5" x 1.5")
• Weight: 500 g
• Connector: N-type, female at bottom (can be installed also upside down)
• Back plane: UV protected plastic (metal reinforced from the inside)
• Radome: UV protected polycarbonate
• Mount: Adjustable MNT-22 mount

Environmental specifications:

• Operating temperature range: -40°C to +65°C
• Vibration: According to IEC 60721-3-4
• Wind load: 200 km/h (survival)
• Flammability: UL94
• Water proofing: IP-65
• Humidity: ETS 300 019-1-4, EN 302 085 (annex A.1.1)
• Salt fog: According to IEC 68-2-11
• Ice and snow: 25 mm radial (survival).
