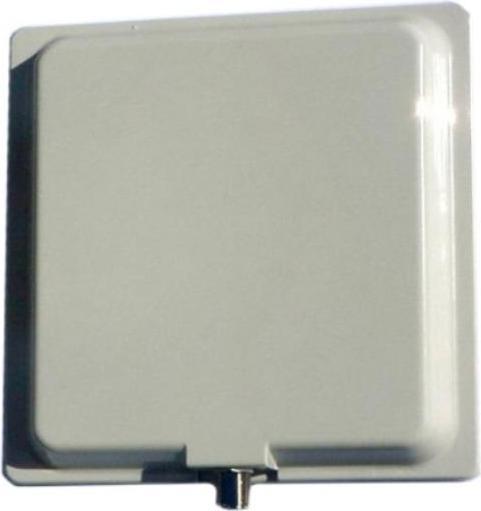

Mars MA-CLTE-14B - LTE Multiband Panel Antenna wall/pole mountable for outdoors, incl. mounting

MARS MA-CLTE-14B - LTE multiband panel antenna, wall/pole mountable for outdoors

The up-to-date multiband panel antenna covers all the bands for LTE 700 MHz, cellular bands, as well as ISM, WLAN, GSM1800, UMTS, and Bluetooth. The antenna is aesthetic, small, and has an unobtrusive profile that blends easily with any environment. It can be used for both indoor and outdoor applications and features different mounting options.

Electrical

Standard: LTE; 700 SMR, AMPC, CDMA, TDMA, GSM 900; GSM 1800, UMTS; Bluetooth, ISM, WLAN
Frequency range: 698-806 MHz; 806-960 MHz; 1710-2170 MHz; 2.2-2.7 GHz
Gain, typ.: 5 +/-1 dBi; 6 +/-1 dBi; 6.5 +/-1 dBi; 5 +/-1 dBi
VSWR, max.: 2:1; 2:1; 1.7:1; 1.7:1
3 dB beam-width, H-plane, typ.: 130°; 140°; 80°; 55°
3 dB beam-width, E-plane, typ.: 70°; 60°; 45°; 30°
Polarization: Linear, vertical
Input power, max.: 10 Watt
Input impedance: 50 Ohm

Mechanical

Dimensions (H x W x D): 231 x 215 x 37.5 mm (9.1" x 8.5" x 1.5")
Weight: 500 g
Connector: N-type, female at bottom (can be installed also upside down)
Back plane: UV protected plastic (metal reinforced from the inside)
Radome: UV protected polycarbonate
Mount: Adjustable MNT-22 mount

Environmental

Operating temperature range: -40°C to +65°C
Vibration: According to IEC 60721-3-4
Wind load: 200 km/h (survival)
Flammability: UL94
Water proofing: IP-65
Humidity: ETS 300 019-1-4, EN 302 085 (annex A.1.1)
Salt fog: According to IEC 68-2-11
Ice and snow: 25 mm radial (survival).
